Introduction
FW2POF200-x is a FireWire (IEEE 1394) to POF (Plastic Optical Fiber) Repeater featuring Texas Instrument's TSB41BA3 and TOSHIBA TODX2402 (250Mb/s Fiber Optical Transceiving Module for SMI Connector). FW2POF200-x enables 1394b 200-Mbps signals to be transmitted and received across up to 20 meters of POF cable. It's easy to setup and there is no configuration necessary, like all FireWire (IEEE 1394) compliant hardware.

Note: SMI (Small Multimedia Interface).

Technical Specifications
  • Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus
  • Fully Interoperable With Firewire, SB1394, DishWire, and i.LINK Implementation of IEEE Std 1394
  • Fully Supports Provisions of IEEE Std 1394b-2002 at S100/S200/S400 Signaling Rates.
    Port 1: 1394a-2000, data strobe-only, S400, S200, and S100 operating speeds.
  • Provides one(FW2POF200-1) or two Fiber Optic Transceiving Module for SMI (Small Multimedia Interface) Connector to Drive IEEE Std 1394b Signaling Across Plastic Optical Fiber (POF) Cable at 200 Megabits per Second (Mbits/s)
    Port 0, Port 2: 1394b-2002 Beta-only, S200b, and S100b operating speeds.
  • Enables 1394b 200-Mbps signals to be transmitted and received across up to 20 meters of Plastic Optical Fiber (POF) cable
  • 250Mb/s SMI Optical Transceiver TODX2402
  • Data Rate : Up to 250Mb/s
  • Distance :
    • Up to 20m (@250Mb/s)
    • Up to 50m (@125Mb/s)
  • Operating Temparature :
    • 0 to 60 degC (@250Mb/s)
    • -10 to 70 degC (@125Mb/s)
  • 3.3V PECL Interface
  • Applications:IEEE1394.b S100/S200

Handing precaution:
The LED's used in the product contain GaAs (Gallium Arsenide).
Care must be taken to protect the safety of people and the environment when scrapping or terminal processing.

  • DC Power Connector: Walkman-type 1.3 mm DC Jack
  • Power Input Range: DC 8V~30V, max. 1.35A
Major Categories

Available Models:

Enlarge Model Mode NO. Self-ID Type Description
FW2POF200-1 25 1394b   FireWire to one POF Repeater
FW2POF200-02A 25 1394b Corner Type FireWire to two POF Repeater
FW2POF200-02B 25 1394b T-Type FireWire to two POF Repeater












Hardware Requirements
  • Desktop PC:
    With either a built-in FireWire (IEEE-1394) controller or a FireWire (IEEE-1394) to PCI Host Adapter equipped with an external FireWire (IEEE 1394) port.
  • Laptop PC:
    With either a built-in FireWire (IEEE-1394) controller or a FireWire (IEEE-1394) to CardBus PC Card equipped with an external FireWire (IEEE 1394) port.

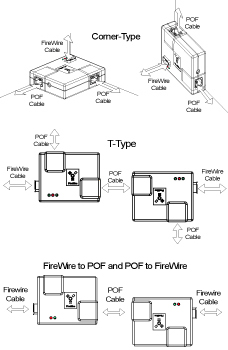

Application

FW2POF200-02A is good for Corner-Type application.
FW2POF200-02B is good for T-Type application.
FW2POF200-1 is for FireWire to POF and POF to FireWire
Enlarge image Enlarge image Enlarge image
