Introduction

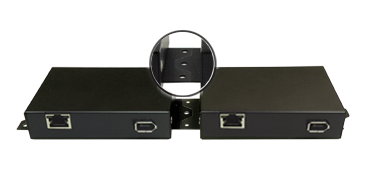

FW-UTPS400 is two FireWire (1394a) to one RJ45 port S400 Repeater

FW-UTPS400 enables 1394 signals to be transmitted and received over Cat5 or Cat6 Unshielded Twisted- Pair (UTP) cable.
FW-UTPS400 is optimized to create long-haul IEEE 1394b-2002 connections over Cat5 or Cat6 at the S400 data rate, but it can also be used at S200 and S100.
FW-UTPS400 also works for Cat5-structured wiring cable that is typically installed in a home or office.

Typical Equalization Performance

1394 Rating
Range using
  Cat5e Cat6
S100 55m 55m
S200 55m 55m
S400 55m 55m

* Measurements performed in lab conditions

Technical Specifications
  • Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus
  • Fully Interoperable With Firewire, SB1394, DishWire, and i.LINK Implementation of IEEE Std 1394
  • Fully Supports Provisions of IEEE Std 1394b-2002 at S400B Signaling Rates
Mode Mode9 Mode10
JP1-2 Open Short
JP3-4 Short Open
Port 0 B2 S B4 S
Port 1 DS T DS T
Port 2 DS T DS T

Default Mode: 10
LEGEND:
DS = 1394a-2000, data strobe-only, S400, S200, and S100 operating speeds
B2 = 1394b-2002 Beta-only, S200b and S100b operating speeds
B4 = 1394b-2002 Beta-only, S400b, S200b, and S100b operating speeds
S = TPBIAS#_SD# terminal is in signal detect input mode
T = TPBIAS#_SD# terminal is in TPBIAS output mode

  • Equipped with a multi-rate adaptive equalizer which restore IEEE Std 1394b signals received over Cat 5 or Cat6 Unshielded Twisted Pair (UTP) Cable at 400 Megabits per Second (Mbits/s)
  • DC Power Connector: Walkman-type 2.0 mm DC Jack
  • Power Input Range: DC 8V~30V, max. 1.35A
  • Power & Link LEDs
Pin Assignment of RJ45 Connector

FW-UTPS400
The wiring signal of the RJ45 connector is compatible with 100baseT Ethernet (pin1,2,3,6). Users can use the crossover type Cat5e or Cat6 cable.

Pin Signal
1 TPB
2 TPB*
3 TPA
4 +V(BusPower)
5 0V(Ground)
6 TPA*
7
8
Hardware Requirements
  • Desktop PC:
    With either a built-in FireWire (IEEE-1394) controller or a FireWire (IEEE-1394) to PCI Host Adapter equipped with an external FireWire (IEEE 1394) port.
  • Laptop PC:
    With either a built-in FireWire (IEEE-1394) controller or a FireWire (IEEE-1394) to CardBus PC Card equipped with an external FireWire (IEEE 1394) port.
Application

Applicaiton 1

Application 2
Certifications
  • CE Test: Pass
  • FCC Test : Pass
