Introduction

FW-UTPS4W1 is FireWire (1394a) to UTP S400 Repeater

FW-UTPS4W1 enables 1394 signals to be transmitted and received over Cat5 or Cat6 Unshielded Twisted- Pair (UTP) cable.
FW-UTPS4W1 optimized to create long-haul IEEE 1394b-2002 connections over Cat5 or Cat6 at the S400 data rate, but it can also be used at S200 and S100.
FW-UTPS4W1 is designed in wallplate form factor so it works for CAT5-structured wiring cable that is typically installed in a home or office.

Typical Equalization Performance

    1394 Rating
    Range using
      Cat5e Cat6
    S100 55m 55m
    S200 55m 55m
    S400 55m 55m

* Measurements performed in lab conditions

Technical Specifications
  • Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus
  • Fully Interoperable With Firewire, SB1394, DishWire, and i.LINK Implementation of IEEE Std 1394
  • Fully Supports Provisions of IEEE Std 1394b-2002 at S400B Signaling Rates
  • Equipped with a multi-rate adaptive equalizer which restore IEEE Std 1394b signals received over Cat 5 or Cat6 Unshielded Twisted Pair (UTP) Cable at 400 Megabits per Second (Mbits/s)
  • Bus-Powered: Power from UTP cable
  • Power Input Range: DC 8V~30V, max. 0.5A

Pin Assignment of IDC Terminal Block Connector

Crossover Type UTP (Cat5e or Cat6) Cable Wiring Diagram
The wiring signal between the RJ45 plug connector and IDC Terminal Block Connector is compatible with crossover type Cat5e or Cat6 cable.

Pin Signal
1 TPB
2 TPB*
3 TPA
4 +V(BusPower)
5 0V(Ground)
6 TPA*
7
8

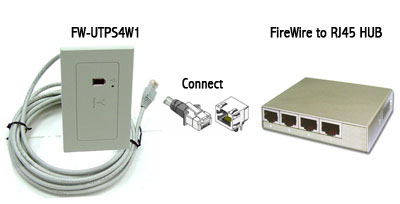

Application
