1394R-B5 is a five ports IEEE1394b repeater, extending your signal an additional 4.5 meters. It's easy to setup and there is no configuration necessary, like all IEEE1394 compliant hardware.

• Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates
• Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus
• Fully Interoperable With Firewire., i.LINK., and SB1394., Implementation of IEEE Std 1394
• PHY Chip: TI TSB81BA3D.
• 1394 Bus Transfer Rate: 100/ 200/ 400/ 800 Mbps
• Device Interface: Provides Four Fully Backward Compatible, (1394a.2000 Fully Compliant) Bilingual P1394b Cable Ports at up to 800 Megabits per Second (Mbits/s)

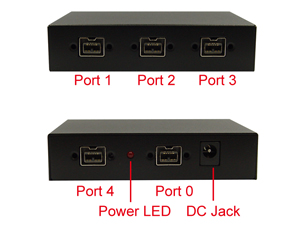

• Number of ports: Five Bilingual Cable Port (with Jackscrew Lock Holes)
• DC Power input Connector: Walkman-type 2.0 mm DC Jack
• Power Input Range: DC 8V~30V, max. 3A
• Power Consumption: Under 3 Watts.
• IEEE 1394 Power Class:
  • 1394R-B5 was designed with 1394 power class 4 (PC0 ~ PC2 = 100).
  • 1394R-B5 is a bus-powered device, it could be powered from DC Jack/ FireWire (IEEE 1394) bus and will repeat the power to FireWire (IEEE 1394) bus.
  • Power Class Descriptions: Node may be powered from the bus for the PHY only using up to 3W and may also provide power to the bus. The amount of bus power that it provides can be found in the configuration ROM. * Each IEEE 1394 (FireWire) port is protected by one 1.35A/33V Fuse.
• Power LED

• Cable extension
• Four more ports
• Provide power to the 1394 bus

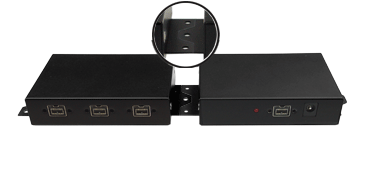

• Provide a metal bracket for fixing the 1394R-B5.

• 92 (W) x 62 (D) x 20.6 (H) mm

• 1394R-B5 Repeater

• AC to DC Power Adapter (PS-00035)
• AC power cord 6 feet length (option)
  • North America Plug (NEMA 5-15) --- CB-00260-02
  • Europe Plug (CEE 7-VII Schuko) --- CB-00264
  • British Standard Plug (BS 1363) --- CB-00103
  • Australia Plug (AS3112) --- CB-00272

• CE Test: Pass
• FCC Test : Pass
