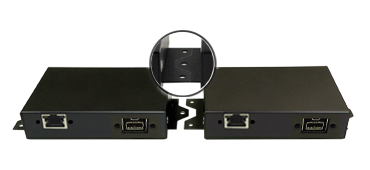

FWB-UTPS400 is two FireWire 400 (IEEE 1394b) to one RJ45 port S400 Repeater.

FWB-UTPS400 enables 1394 signals to be transmitted and received over Cat5 or Cat6 Unshielded Twisted- Pair (UTP) cable.
FWB-UTPS400 is optimized to create long-haul IEEE 1394b-2002 connections over Cat5 or Cat6 at the S400 data rate, but it can also be used at S200 and S100.
FWB-UTPS400 also works for Cat5-structured wiring cable that is typically installed in a home or office.

Typical Equalization Performance

* Measurements performed in lab conditions

• Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus
• Fully Interoperable With Firewire, SB1394, DishWire, and i.LINK Implementation of IEEE Std 1394
• Fully Supports Provisions of IEEE Std 1394b-2002 at S400B Signaling Rates

Mode	Mode16		Mode17		Mode18
JP1/1-2	Short		Open		Short
JP1/3-4	Short		Short		Open
Port 0	B1	S	B2	S	B4	S
Port 1	Bi	T	Bi	T	Bi	T
Port 2	Bi	T	Bi	T	Bi	T

Default Mode: 18

LEGEND:
B1 = 1394b-2002 Beta-only, S100b operating speed
B2 = 1394b-2002 Beta-only, S200b and S100b operating speeds
B4 = 1394b-2002 Beta-only, S400b, S200b, and S100b operating speeds
S = TPBIAS#_SD# terminal is in signal detect input mode
T = TPBIAS#_SD# terminal is in TPBIAS output mode
Bi = 1394b-2002 bilingual (S400b only Beta operating speed and data strobe: S400, S200, and S100 operating speeds)

• Equipped with a multi-rate adaptive equalizer which restore IEEE Std 1394b signals received over Cat 5 or Cat6 Unshielded Twisted Pair (UTP) Cable at 400 Megabits per Second (Mbits/s)
• PHY Chip: TI TSB41BA3D.
• Number of ports:
  • Two Bilingual Cable Port (with Jackscrew Lock Holes)
  • One RJ45 Cable Port (with Jackscrew Lock Holes)
• 1394 Bus Transfer Rate:
  • Two Bilingual Cable Port: S400b only Beta operating speed and data strobe: S400, S200, and S100 operating speeds
  • One RJ45 Cable Port: 1394b-2002 Beta-only, S400b, S200b, and S100b operating speeds
• DC Power Connector: Walkman-type 2.0 mm DC Jack
• Power Input Range: DC 8V~30V, max. 3A
• Power Consumption: Under 3 Watts.
• IEEE 1394 Power Class::
  • FWB-UTPS400 was designed with 1394 power class 4 (PC0 ~ PC2 = 100).
  • FWB-UTPS400 is a bus-powered device, it could be powered from DC Jack/ FireWire (IEEE 1394) bus and will repeat the power to FireWire (IEEE 1394) bus.
  • Power Class Descriptions: Node may be powered from the bus for the PHY only using up to 3W and may also provide power to the bus. The amount of bus powerthat it provides can be found in the configuration ROM. * Each IEEE 1394 (FireWire) port is protected by one 1.35A/33V Fuse.
• Power & Link LEDs

FWB-UTPS400
The wiring signal of the RJ45 connector is compatible with 100baseT Ethernet (pin1,2,3,6). Users can use the crossover type Cat5e or Cat6 cable.

8P8C Wiring (T568B)

Pin Signal 1 TPB 2 TPB* 3 TPA 4 +V(BusPower) 5 0V(Ground) 6 TPA* 7   8

• Desktop PC / Laptop PC: with OHCI Compliant IEEE 1394b Host Controller.

Applicaiton 1

Application 2

• 21.46(H) x 93 (W) x 62.17 (D) mm
• NW: 182g

• CE Test: Pass
• FCC Test : Pass
