DB525U3H402 4 port USB 3.0 HUB

Highlights

Designed with VL811Plus (USB 3.0 Compliant Hub, TID# 330000022)
Supports USB 3.0 data transfer rate up to 5Gbps
Supports USB 3.0 SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
Supports one upstream port and four downstream ports
Provides USB Status LEDs for each downstream port
No Special Driver Requirements; Works Seamlessly With Any Operating System With USB Stack Support

Introduction

The DB525U3H402 is a high-performance Universal Serial Bus (USB) 3.0 Hub.

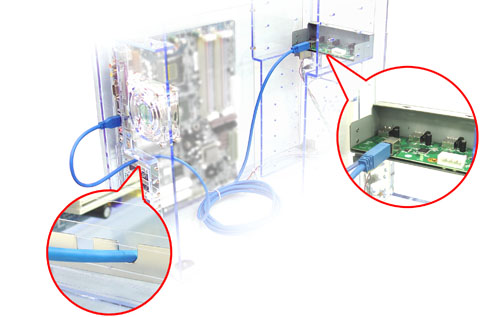

DB525U3H402 allows a single USB port to be used by up to four high-bandwidth USB 3.0 devices simultaneously.

DB525U3H402 allows for a maximum data transfer rate of up to 5Gbps, or ten times the throughput available to USB 2.0 based devices. Other enhancements provide for improved interaction between device and host controller, including important advancements in power management.

One upstream port and four downstream ports support not just SuperSpeed transfer, but are also backwards compatible with previous USB specifications and offer support for Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) traffic.

DB525U3H402 can work on Windows 7, Vista, XP, 2003/2000/ME, Mac OS X and various Linux kernels without additional driver.

Technical Specifications

Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
Compliant to Universal Serial Bus Specification Revision 2.0
Supports USB 3.0 SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
In-house USB PHY employing advanced CMOS process to consume less power
DC power input: IDE Big 4pin power connector
Supports individual mode for power enable and over current detection on each
down-stream port
Provides green and amber LED status indicator with automatic and manual mode control on
each downstream port

Operating System Requirements
