• USB 3.0 Compliant Hub, TID# 330000037
• Supports USB 3.0 SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
• Supports one upstream port and four downstream ports
• Supports Spread Spectrum Clock (SSC)
• Multi Transaction Translator (MTT) Hub: Four Transaction Translators, One Per Port
• 3.5" FDD Form Factor
• Provides four CDP (Charging Downstream Port) or DCP (Dedicated Charging Port)
• Automatic selection of D+/D- Mode for an attached device.
• Provides multiple modes of charging to meet the following specifications:
• USB Battery Charging Specification BC1.2
• • Chinese Telecommunications Industry Standard YD/T 1591-2009
• • Divider-1A, Divider-2A and Divider-2.4A Mode
• • DCP-1.2V Mode
• No Special Driver Requirements; Works Seamlessly With Any Operating System With USB Stack Support

U3H415E1 is a high-performance four-port Universal Serial Bus (USB) 3.0 compliant Hub.

U3H415E1 allows for a maximum data transfer rate of up to 5Gbps, or ten times the throughput available to USB 2.0 based devices. Other enhancements provide for improved interaction between device and host controller, including important advancements in power management.

U3H415E1 provides simultaneous SuperSpeed USB and High-Speed/Full-Speed connections on the upstream port and provides SuperSpeed (5Gbps) USB, High-Speed (480Mbps), Full-Speed (12Mbps), or Low-Speed (1.5Mbps) connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports High-speed or Full-speed/Low-speed connections, SuperSpeed USB connectivity is disabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports Full-speed/Low-speed connections, SuperSpeed USB and High-speed connectivity are disabled on the downstream ports.

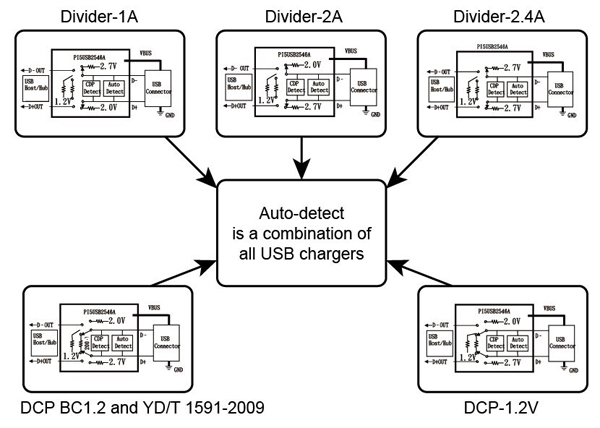

The U3H415E supports four of the most common USB charging schemes found in popular hand-held media and cellular devices:

• USB Battery Charging Specification BC1.2
• Chinese Telecommunications Industry Standard YD/T 1591-2009
• Divider-1A, Divider-2A and Divider-2.4A Mode
• •DCP-1.2V Mode

YD/T 1591-2009 is a subset of BC1.2 spec. supported by vast majority of devices that implement USB charging.
Divider-1A, Divider-2A, Divider-2.4A and DCP-1.2V charging schemes are supported in devices from specific yet popular device makers.

• USB 3.0 Compliant Hub, TID# 330000037
  • Upstream Port Supports SuperSpeed USB, High-Speed and Full-Speed Connections
  • Supports Four Downstream Ports
  • Each of the Four Downstream Ports Support SuperSpeed USB, High-Speed, Full-Speed/Low-Speed Connections
• USB 2.0 Hub Features
  • Multi Transaction Translator (MTT) Hub: Four Transaction Translators, One Per Port
  • Four Asynchronous Endpoint Buffers Per Transaction Translator (TT) for Better Throughput Than the USB Required Minimum of Two Buffers Per TT
• Provides Upstream Connection status LEDs (SuperSpeed and High-Speed):
  • High-Speed status LED
    • Off = Hub in low/full speed mode
    • On = Hub in high-speed mode
  • SuperSpeed status LED
    • Off = Hub not in SuperSpeed USB mode
    • On = Hub in SuperSpeed USB mode
• Provides Downstream USB Port Bus-Power status LEDs
• Dim= Available
• Bright = CDP/DCP mode
• Off = Unavailable
• Downstream Port Configuration:
  • Enabled all Downstream Port
  • Marked as Removable
  • Battery Charging Enabled
• DC Power input Connector: Walkman-type 2.0 mm DC Jack
• Power Input Range: DC 12V( max. 5.0A)
• Self-powered operation.
• Downstream USB Bus Power
  • Each downstream Port (P1 ~ P4) can supply up to 2.1A.
• Supports Over-current detection and Individual power control.
• Provides downstream ports Bus-Power indicator LEDs (Green)
• Provides multiple modes of charging to meet the following specifications:
• USB Battery Charging Specification BC1.2
• Chinese Telecommunications Industry Standard YD/T 1591-2009
• Divider-1A, Divider-2A and Divider-2.4A Mode
• •DCP-1.2V Mode
• Customizable vendor ID, product ID, and device ID.

• 3.5" FDD Form Factor
• 25.4mm (H) x 101mm (W) x 90mm (D)

Kit 1:

• U3H415E1 4 port USB 3.0 Hub
• CB-00541-01 --- USB 3.0 A Plug to USB 3.0 B Plug Cable with Jackscrews (M2) on one End 2M
• PS-00025-02 --- AC to DC Power Adapter (12V/5A)
• AC power cord 6 feet length (option)
  • North America Plug (NEMA 5-15) --- CB-00260-02
  • Europe Plug (CEE 7-VII Schuko) --- CB-00264
  • British Standard Plug (BS 1363) --- CB-00103
  • Australia Plug (AS3112) --- CB-00272

Kit 2:

• U3H415E1 4 port USB 3.0 Hub
• CB-00537-01 ---USB 3.0 A Plug with two Jackscrews (M2 pitch:19mm) to B Plug with two Jackscrews (M2) Cable 2M
• PS-00025-02 --- AC to DC Power Adapter (12V/5A)
• AC power cord 6 feet length (option)
  • North America Plug (NEMA 5-15) --- CB-00260-02
  • Europe Plug (CEE 7-VII Schuko) --- CB-00264
  • British Standard Plug (BS 1363) --- CB-00103
  • Australia Plug (AS3112) --- CB-00272

Kit 3:

• U3H415E1 4 port USB 3.0 Hub
• CB-00630-02 --- USB 3.0 A Plug with two Jackscrews (M2 pitch:22mm) to B Plug with two Jackscrews (M2 pitch:22mm) Cable 2M
• PS-00025-02--- AC to DC Power Adapter (12V/5A)
• AC power cord 6 feet length (option)
  • North America Plug (NEMA 5-15) --- CB-00260-02
  • Europe Plug (CEE 7-VII Schuko) --- CB-00264
  • British Standard Plug (BS 1363) --- CB-00103
  • Australia Plug (AS3112) --- CB-00272
