Highlights
  • SuperSpeed-only Upstream Port (USB 3.0 Standard-A type Receptacle)
    • Good for USB 3.0 AOC Application
    • Upstream port can supply 5V for USB 3.0 A.O.C module
  • 4-port SuperSpeed Hub with an embedded host to support USB2 (D+/D-) traffic over USB3 (SSTX/SSRX)
  • Driver Requirements; To support USB2 (D+/D-) traffic over USB3 (SSTX/SSRX)
  • Four (Three USB 3.0 & One USB 2.0) Downstream Ports Compliant to USB Specifications 1.1, 2.0, and 3.0
  • Provides USB 3.0 cable port lock mechanism
    • One upstream USB 3.0 cable port (Standard-A type Receptacle) with three screws lock mechanism
Introduction

U3H442E is a high-performance four-port Universal Serial Bus (USB) 3.0 compliant Hub. U3H442E with F-One™ technology is a patented approach to attach multiple USB2 peripherals to a single SuperSpeed-only port. F-One™ mode implies a “Superspeed”-only upstream port.

U3H442E provides SuperSpeed-only USB connections on the upstream port and provides SuperSpeed (5Gbps) USB, High-Speed (480Mbps), Full-Speed (12Mbps), or Low-Speed (1.5Mbps) connections on the downstream ports.U3H442E will not work when the upstream port is connected to an electrical environment that only supports High-speed or Full-speed/Low-speed connections.

U3H442E is designed to be compliant with SuperSpeed USB electrical specifications, offering seamless interoperability between existing USB 3.0 hosts, USB 3.0 Active Optical Cable (AOC) and devices, ensuring a trouble-free plug-and-play experience. With an ultra-thin profile and long reach, the USB 3.0 AOC breaks the distance barrier and introduces a cost-effective and high-performance solution enabling existing devices to be used in new ways such as for industrial and security cameras, Industrial and Medical machine control and High-Definition surveillance.

Technical Specifications
  • Upstream (US) Port SuperSpeed Compliant in F-One™ mode
  • Downstream (DS) Ports Compliant to USB Specifications 1.1, 2.0, and 3.0
  • Support the following:
    • Multiple USB2.0 Transaction Translators (TT)
    • Fully compliant to all power states (USB3 U1/U2/U3, USB2 L1/L2)
  • U3H442E1 Power
    • DC Power input Connector: Walkman-type 2.0 mm DC Jack
    • Power Input Range: DC 9 ~ 24V ( max. 5.0A)
  • U3H442E2 Power
    • DC Power input Connector: MINI-COMBICON Header
    • Power Input Range: DC 9 ~ 24V ( max. 8.0A)
  • Self-powered operation.
  • USB Bus Power
    • Each downstream port (P1 ~ P4) can supply 5V up to 2.0A
    • Upstream port can supply 5V for USB 3.0 A.O.C module
  • Supports Over-current detection and Individual power control.
  • Customizable vendor ID, product ID, and device ID.
  • USB 3.0 cable ports
    • Four (Three USB 3.0 & One USB 2.0) Downstream Ports
    • One upstream port (Standard-A type Receptacle)
      • Provides USB 3.0 cable port lock mechanism

    • USB 3.0 Standard-A type lock mechanism

Available Models

U3H442E1
Walkman-type 2.0 mm DC Jack

U3H442E2
MINI-COMBICON Headers

Operating System Requirements
  • USB 3.0 Hub Drivers for windows 7/ 10
Physical Dimensions
  • 21.46(H) x 93 (W) x 62.17 (D) mm
  • NW: 186.4g

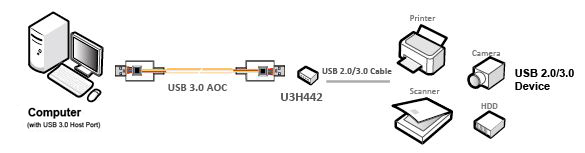

Applications
Related Products
  • U3AOC-A0A0---USB 3.0 AOC (Active Optical Cable), A plug to A Plug
Kit includes

U3H442E1

  • U3H442E1 4 port USB 3.0 Hub
  • PS-00025-03 --- AC to DC Power Adapter (12V/5A)
  • AC power cord 6 feet length (option)
    • North America Plug (NEMA 5-15) --- CB-00260-02
    • Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • British Standard Plug (BS 1363) --- CB-00103
    • Australia Plug (AS3112) --- CB-00272
  • Driver CD

U3H442E2

  • U3H442E2 4 port USB 3.0 Hub
  • Driver CD
