• Designed with VL210 (USB 3.0 Compliant Hub)
  • Earned USB 2.0 USB-IF certification
  • Earned USB 3.0 USB-IF certification TID# 330000050
  • Passed Windows HCK Logo for Windows 8, RT
• Supports USB 3.0 SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
• Boost the USB Bus-Power Voltage
• Provides USB 3.0 cable port lock mechanism
• USB 3.0 cable port connectors
  • One upstream USB 3.0 cable port ( Micro B-type Receptacle), TID# 361000096
  • One downstream USB 3.0 cable ports (Standard A-type Receptacle), TID# 360000145
• No Special Driver Requirements; Works Seamlessly With Any Operating System With USB Stack Support

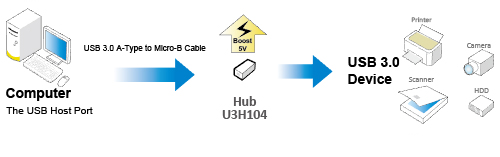

U3H104 is a high-performance one-port Universal Serial Bus (USB) 3.0 compliant Hub (Boost the USB Bus-Power Voltage), extending your USB 3.0 signals an additional length (3~8m).

One upstream port and one downstream ports support not just SuperSpeed transfer, but are also backwards compatible with previous USB specifications and offer support for Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) traffic.

U3H104 allows for a maximum data transfer rate of up to 5Gbps, or ten times the throughput available to USB 2.0 based devices. Other enhancements provide for improved interaction between device and host controller, including important advancements in power management.

• USB 3.0 Compliant Hub
  • Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
  • Compliant to Universal Serial Bus Specification Revision 2.0
  • One up-stream port supports Super-speed(SS), high-speed (HS) and full-speed (FS) traffic
  • One down-stream ports support Super-speed(SS), high-speed (HS), full-speed (FS), and low-speed (LS) traffic
  • Supports USB 3.0 low power states
• USB Bus Power
  • Designed with high-efficiency, synchronous step-up converter to guaranteed 2.1A output current at VOUT = 5V
• Provides USB 3.0 cable port lock mechanism
• Upstream (Micro B-type Receptacle) USB3.0 cable lock mechanism

• Downstream (Standard A-type Receptacle) USB3.0 cable lock mechanism



Application:

• 27(W) x 21(H) x 65(D)mm
• NW.:42.5g

• CE Test: Pass
• UKCA Test: Pass
• FCC Test : Pass
• VCCI Test: Pass
• RCM Test: Pass

USB 3.0 Cable USB 3.0 A Plug to Micro-B Plug Cable

USB 3.0 Active Cable USB 3.0 A Plug to Micro-B Plug Active Cable with two Jackscrews (M2) on both ends , L=11~14M
