The IOIIDEMR Mobile Rack is designed to fit the dimension of 5.25" device bay of a computer case.
By using Keylock + Power Switch to control the HDD power and DC (12V & 5V) Power output, make the HDD Mobile Tray Hot Swaptable.
IOIIDEMR allows the user to hot-swap ATA/SATA Hard Disk Drive easily.
There are two models (IOIIDEMR-05 and IOIIDEMR-12) for choice.

• Frame is designed to fit the standard dimension of 5.25" device bay of a computer case.
• The inner HDD tray provide the screw hole for 3.5" SATA/ATA HDD.
• The inner HDD tray and mounting frame were made by aluminum which is good for heat dissipation.
• Ejecting pull handle with miniature keylock.
• Keylock + Power Switch make the HDD Mobile Tray Hot Swaptable

• One Built-in 40x40 mm cooling fan.
• Power indicator LED and HDD Access LED



• Provide three kinds of HDD Mobile Tray:
  • 3.5" ATA HDD Mobile Tray (default)
  • 2.5" ATA HDD Mobile Tray
  • 3.5"/2.5" Serial ATA HDD Mobile Tray

  For 2.5" ATA HDD	For 3.5" ATA HDD	For 3.5"/2.5" SATA HDD

Notes:

• EC-00104 (beige color) Mobile Tray is for 3.5" ATA HDD
• EC-00056 (black color) Mobile Tray is for 3.5" ATA HDD
• IDE-SATAMT01a (beige color) Mobile Tray is for 3.5" Serial ATA HDD
• IDE-SATAMT01b (black color) Mobile Tray is for 3.5" Serial ATA HDD
• 35-25MT01a (beige color) Mobile Tray is for 2.5" ATA HDD
• 35-25MT01b (black color) Mobile Tray is for 2.5" ATA HDD

USB 2.0/FireWire mobile rack solution for ATA/SATA drives.

Peripheral vendors using the USB 2.0/FireWire bridge board with IOIIDEMR now have an immediate and no-risk solutions for adding the hot-swap function to their ATA/SATA drives.

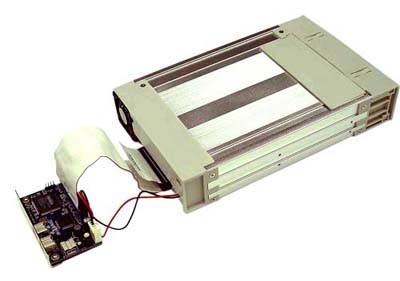

FWB-IDE01 + IOIIDEMR-05 = FireWire 800 (IEEE 1394b) to ATA Mobile Rack.

FWB-IDE01 + IOIIDEMR-05 = FireWire 800 (IEEE 1394b) to ATA Mobile Rack.

• IOIIDEMR Mobile Rack (Black or Beige Color for Choice)
• Blue -to- Black UDMA IDE cable
• Installation Guide.
