Introduction

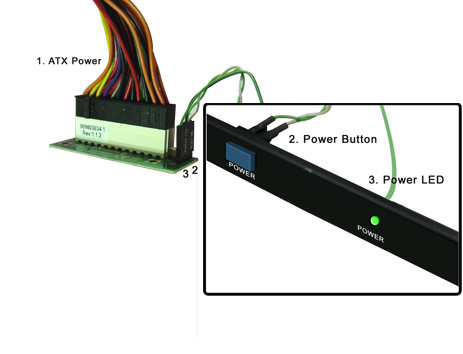

ATX-PS01 is an ATX SMPS (Switching Mode Power Supply) controller. With ATX-PS01 you will be able to control (On and Off) the PC's ATX SMPS. We provide a PCI bracket for fixing it inside standard PC case.

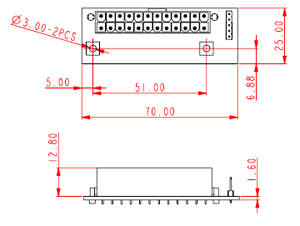

Physical Dimensions
  • 2.5(D)x7.00(W)x1.28(H)cm
Net Weight
  • 13g
  • 31.5g w/PCI Form Factor Bracket
Kit includes
  • ATX-PS01 w/PCI Form Factor Bracket
  • Installation Guide
Certifications
  • CE Test: Pass
  • FCC Test : Pass
  • VCCI Test: Pass



Packing list

Q'ty
Carton
Carton size
N.W.
G.W.
Remark
Kit 1
200
CT-00008
58*44*23cm
3kg
5.5kg
 Bulk Packing
Kit 2
45
CT-00014
53.5*34*29cm
4.5kg
5.5kg
 w/Box
