Introduction
  • Provides four SATA 7-pin latch Connectors
  • Provides one infiniband Multilane 4x SATA Jackscrew type Connector
  • Supports SATA I/SATA II Drives
  • Supports total SATA cable length (internal + external) up to 3 meters or more.
  • MLSATA4X01S is designed in SCSI 1 low density centronics 50pin connector form factor.
Physical Dimension
  • (WxHxD):4.40 x 1.25 x 3.95cm
    SCSI I 50pin Low Density Centronics Connector Form Factor
    (Fit to most standard SCSI enclosure)
Applications
  • Idea to attach four SATA HDDs (External Storage) into one external Multilane 4x SATA Port.
  • For integrating external SATA HDDs (JOBD).

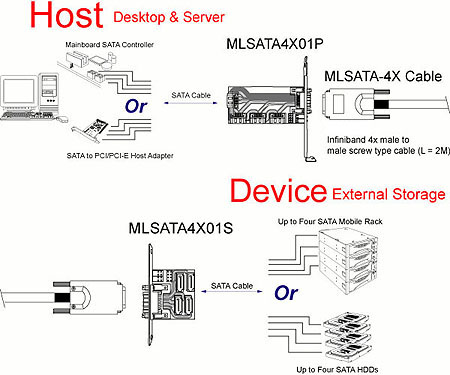

Illustration

Option:
Multilane SATA 4X Cable
