Introduction
  • Input: POWER 4S FEMALE TYPE
  • Output: FDD like mini 4pin power connector
  • Power indicator LED:
    • Red LED: 5V
    • Green LED: 12V
Application

  • To supply more current for the USB or Firewire device .



Net Weight
  • 32.7g
Kit Includes
  • DCS1-1205 Power Switch

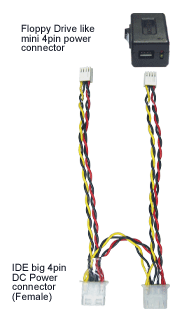

  • Y-Shape DC Power Cable (Red, Black, Black, Yellow) with power connectors (two FDD like mini 4pin and two IDE big 4pin female plug). See the picture below. (CB-00237)



  • SATA 15pin female -to- IDE big 4pin male power connector cable. See the picture below. (CB-00194)

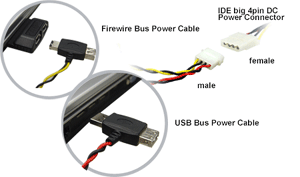

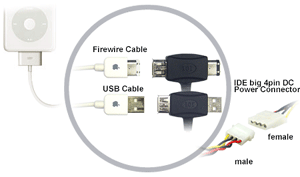

  • USB Bus Power Cable (USB A Receptacle to A Plug with one IDE big 4pin male power plug). See the picture below.
    FireWire Bus Power Cable (FW-6pin Receptacle to FW-6pin Plug with one IDE big 4pin male power plug). See the picture below.
    (CB-00271)



  • AC 100 ~ 240 V to DC +5V/2A and +12V/2A Power Adapter
    (PS-00006)
    • Input: Full Range 100 ~ 240 V, 1.2A 50 ~ 60Hz
    • Output: DC +5V/2A and +12V/2A
    • Power Max. 34 Watt
    • Safety: UL/CSA/TUV/BSMI
  • AC power cord (Length: 6 feet)



  • 3.5" HDD Metal Plate, Screws and Foot pads
  • User's Guide
