Technical Specifications
Mini-SAS HD (SFF-8643) 4i to M.2 Adapter
Upstream Connector
M.2 NGFF Type 2242-D2-M
Socket 3 PCIe-based Module Pinouts (Key M)
Supports 4-lane PCI Express bandwidth
Downstream Connector
SFF-8643 Connector
85ohm, 36pin (pitch=0.75)
4-Lane PCIe
Dimensions
22x42mm

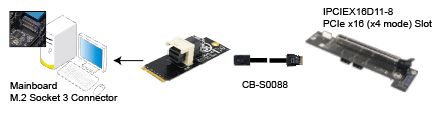

Application
