Highlights
  • One 5.25" ODD form factor
  • Two PCIe x4 slots (x2 mode)
    • Supports 2-lane PCI Express Bandwidth
    • Compliant with PCI Express base specification revision 2.0
    • PCIe Gen 2: 10 Gbps
  • Provides the PCI Express expansion solution for PCI Express x2 host cards
Introduction

DB525-DIP2XD2X20 is a PCI Express (PCIe) Add-On card docking system for DIP2X-PCIE4XG210, The DB525-DIPD2XD2X20 provides two PCIe x4 slots (x2 mode) and two dual-lane Internal PCIe ports (IOI Proprietary) in connection to the PCIe switch host card ( DIP2X-PCIE4XG210).  Designed to have with  the standard size of one 5.25" ODD form factor, DB525-DIP2XD1X20 enables the user to have more PCI Express slot for the capability of installing more PCIe HBA.

Technical Specifications
  • Upstream host connectors: Two dual-lane Internal PCIe ports ( IOI Proprietary)
    • 10X2_19pin Header (Pitch=2.0mm)
    • 2-lane PCIe (PCIe x2)
  • Downstream Internal PCIe bus interface:
    • Two PCIe x4 slots (x2 mode)
    • Supports 2-lane PCI Express bandwidth
  • Power connector: One SATA 15pin power connector
  • Dimensions
    • One 5.25" ODD form factor
    • 146.6(W) x 42(H) x 175 (D) mm
    • NW: 352g

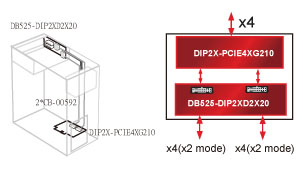

Applications

Application : x4, x2, x2

PCIe x4 to two PCIe x2 slots
Model No: DIP2X-D2X20
