Highlights
  • PCIe x8 Slot
    • Supports eight PCI Express Lanes Bandwidth
    • Support Half-Size PCIe x8 Add-in-Card
  • 68pin iPass™(0.8mm pitch) compatible I/O Connector
    • Supports eight PCI Express Lanes Bandwidth
  • Single DC 12V Input
  • No Power Switch (Power On/Off Control by PCIe Cable Adapter automatically)
  • Provide Power indicator LEDs for power and 3.3Vaux
  • Provide two Ear Brackets for different ways of fixed support
Introduction

EPCIEX8D01E is an external PCIe x8 to PCIe x8 Slot Docking Enclosure. The EPCIEX8D01E expands PCI Express connectivity from your desktop computer, enabling seamless, high performance, and reliable control of remote PCIe device.
No additional software or drivers are needed – the remote devices operate as if they were directly installed in your computer.
Designed to overcome the limited PCIe connectivity of most desktop computers, the EPCIEX8D01E can be quickly and easily set up for multi-I/O, high throughput, or hazardous applications.

In particularly rugged environments, your desktop computer can be placed at a secure location up to 7 meters (for PCIe Gen 1.0) or 100 meters (with PCIe A.O.C) away. High performance and reliable communication is maintained with the well-shielded extension cable or A.O.C (Active Optical Cable), and the docking station is designed to withstand high or low temperatures, vibrations and shocks.  In addition, the isolation between core components and docked PCIe devices eliminates any possible electromagnetic interference between them.

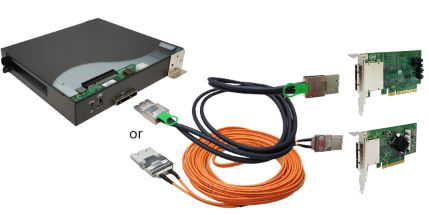

This Application includes a PCIe Cable Adapter Card, a robust Docking Enclosure (EPCIEX8D01E), and a PCIe Cable. The PCIe Cable Adapter Card fits into a PCIe slot ( x8 or x16) in the host computer and communicates to PCIe x8 device installed in the docking station.

PCIe Cable Adapter

Model No. Name Support Cable
Copper AOC
EPCIE8XRDCA02-H External PCI Express x8 (with Gen 3 Redriver) Cable Adapter Card Yes No
EP8X-PCIE8XG301 External PCIe x8 Gen 3 Switch Host Card Yes Yes
Technical Specifications
Upstream host connector
  • 68pin iPass™(0.8mm pitch) compatible I/O Connector
    • Scalability up to 10Gb/s
      • PCIe Gen I – 2.5Gb/s
      • PCIe Gen II – 5.0Gb/s
    • Durability - 250 cycles
    • Fully shielded to provide maximum EMI/RFI protection
      • Guide to system bezel gasket
      • Cable plug gasket to front face of Guide
    • First mate, last break
    • RoHS compliant

Downstream Internal PCIe bus interface

  • PCIe x8 slot
    • Supports Eight PCI Express Lanes bandwidth
    • Support Half-Size PCIe x8 Add-in-Card
Indicator LEDs Power indicator LEDs for power and 3.3Vaux

DC Power Input

  • EPCIEX8D01E1
    • DC Power input Connector: Walkman-type 2.0 mm DC Jack
    • Power Input: DC 12V ( max. 5.0A)
  • EPCIEX8D01E2
    • DC Power input Connector: MINI-COMBICON Header
    • Power Input: DC 12V ( max. 8.0A)
Auxiliary DC Power Output

Provides DC (12V&5V) Power Output
J2: Big IDE 4-pin DC Power Connector

Power Adapter
  • PS-00025-03: Only for EPCIEX8D01E1
    • Input: AC100~240V/50~60Hz, 1.4A MAX.
    • Output: DC12V/5A (60W); Efficiency Level: VI;
    • Plug: Φ5.5*Φ2.1*10mm
    • Cable Length: 1500mm
Form Factor
  • 174.5(W) x 33.1(H) x 207(D) mm
  • NW: 768g
Available Models

EPCIEX8D01E1

  • DC Power input Connector: Walkman-type 2.0 mm DC Jack

EPCIEX8D01E2

  • DC Power input Connector: MINI-COMBICON Header
Kit includes

EPCIEX8D01E1-xx y

  • EPCIEX8D01E1--- PCIe x8 Add-on Card Docking Enclosure
  • CB-00701---Big IDE4-pin Female to Big IDE4-pin Female DC Power Cable, L=20cm
  • xx: AC power cord 6 feet length (option) with Power Adapter (PS-00025-03) AC to DC Power Adapter (12V/5A)
    • US: North America Plug (NEMA 5-15) --- CB-00260-02
    • EU: Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • UK: British Standard Plug (BS 1363) --- CB-00103
    • AU: Australia Plug (AS3112) --- CB-00272
  • y: External PCIe Cable Adapter
    • 1: EPCIE8XRDCA02-H---External PCI Express x8 (with Gen 1/2/3 Redriver) Cable Adapter Card
      • S-BR-00194-04-1020---Low Profile PCI Bracket
    • 2: EP8X-PCIE8XG301--- External PCIe x8 Gen 3 Switch Host Card (Support AOC)
      • S-BR-00194-04-1020---Low Profile PCI Bracket

Example:

  • EPCIEX8D01E1-US
    (Without External PCIe Cable Adapter)
    • US: AC power cord 6 feet length North America Plug (NEMA 5-15) --- CB-00260-02
  • EPCIEX8D01E1-EU1
    • EU: AC power cord 6 feet length Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • 1: EPCIE8XRDCA02-H---External PCI Express x8 (with Gen 1/2/3 Redriver) Cable Adapter Card
      • S-BR-00194-04-1020---Low Profile PCI Bracket

EPCIEX8D01E2-K y

  • EPCIEX8D01E2--- PCIe x8 Add-on Card Docking Enclosure
  • CB-00701---Big IDE4-pin Female to Big IDE4-pin Female DC Power Cable, L=20cm
  • y: External PCIe Cable Adapter
    • 1: EPCIE8XRDCA02-H---External PCI Express x8 (with Gen 1/2/3 Redriver) Cable Adapter Card
      • S-BR-00194-04-1020---Low Profile PCI Bracket
    • 2: EP8X-PCIE8XG301--- External PCIe x8 Gen 3 Switch Host Card (Support AOC)
      • S-BR-00194-04-1020---Low Profile PCI Bracket

Example:

  • EPCIEX8D01E2
    (Without External PCIe Cable Adapter)
  • EPCIEX8D01E2-K1
    • K1: EPCIE8XRDCA02-H---External PCI Express x8 (with Gen 1/2/3 Redriver) Cable Adapter Card
      • S-BR-00194-04-1020---Low Profile PCI Bracket
