Highlights
  • 4U 19-inch rack mount chassis
  • Eight PCIe Gen 4 x4 Slots
  • Supports Two 5.25 inch External Drive Bays
  • Built-in 1200W AC to DC Switching Power Supply
Introduction

ED41A-A2BHB0P1 is a Standard 4U 19-inch rack mount chassis for External PCIe x16 Gen 4 to eight PCIe x4 Slots Docking.

ED41A-A2BHB0P1 includes the following four items:

  • EPCIE16XG4RDCA02
  • QIP8X-PCIE16XG4B1
  • CB-S0038--SlimSAS 8i (SFF-8654) plug to two SlimSAS 4i (SFF-8654) plug 85ohm Y-Cables
  • PS-00059--1200W ATX Form Factor Power Supply
  • ED41A-A2

ED41A-A2 is integrated by the following four key parts

  • ED41A--External PCIe Docking Case (4U Rack Mount Chassis)
  • PCIEX16D11--PCIe x16 Expansion Docking Board
  • DIPCIE4XD11--SFF-8654 4x (38pin) to two PCIe x4 Slots Expansion Board

No additional software or drivers are needed – the remote devices operate as if they were directly installed in your computer.
Technical Specifications
Rack Units
  • 4U
LED (Front)
  • DC Power LED

Construction
  • Heavy Duty Cold Rolled Electroplated Steel
Drive Bay
  • Two 5.25 inch External Drive Bays
Cooling Units
  • Two (92mm=51.5CFM ea.) Fans (Front )
  • One (80mm=41CFM ea.) Fan (Back)
Target Cable Adapter
  • EPCIE16XG4RDCA02
    • Two SFF-8644 1x2
    • PCIe Gen 4 Active Redriver
  • QIP8X-PCIE16XG4B1
    • Four SFF-8654 8x
    • PCIe Gen 4 Switch Card
Slots for Add-in Card
  • DIPCIE4XD11 x 4
    • Eight PCIe x4 Slots
    • Support Full-length PCI Form Factor
Power Supply
  • P1(PS-00059)
    • Power Supply: 1200W
    • AC Input: Voltage:100-240VAC, Frequency: 60-50Hz
    • DC Output:+12V/100A, +5V/25A, +3.3V/25A, +5VSB/3A, -12V/0.3A
Dimensions
  • 4U 19-inch rackmount chassis
    482.6(W) x 177(H) x 408.8(D)mm

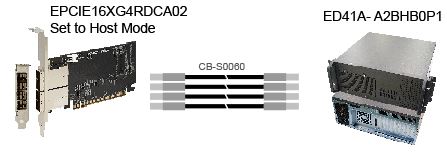

Application

Kit includes

ED41A-A2B xxx P1 y

  • xx Cable Adapter
    • HB0: EPCIE16XG4RDCA02 (Target)
    • HB1: EPCIE16XG4RDCA02 (Target) + EPCIE16XG4RDCA02 (Host)
  • y: AC power cord 6 feet length
    • North America Plug (NEMA 5-15) --- CB-00260-02
    • E: Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • K: British Standard Plug (BS 1363) --- CB-00103
    • A: Australia Plug (AS3112) --- CB-00272

Example:

ED41A-A2BHB0P1U

  • HB0: EPCIE16XG4RDCA02 (Target)
  • North America Plug (NEMA 5-15) --- CB-00260-02

ED41A-A2BHB1P1U

  • HB1: EPCIE16XG4RDCA02 (Target) + EPCIE16XG4RDCA02 (Host)
  • North America Plug (NEMA 5-15) --- CB-00260-02
