Highlights
  • 19-inch rack mount 1U chassis
    • Supports rack mounting depth is 511/529/664mm
  • Built-in 800W AC (100-240V, 47-63Hz) to DC Switching Power Supply
  • Octa channel (Fresco FL1100-1Q0-EX x 8) 32-port (4-port x 8) USB 3.0 on front panel
  • Without  Mini-ITX mainboard and I/O Bracket
Introduction

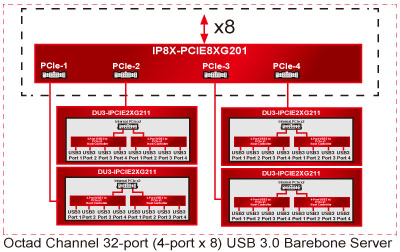

The US1UI-32U3BC00 is an Octad Channel 32-port Front Panel USB 3.0 Barebone Server.

Octad Channel 32-port Front Panel USB 3.0 are integrated by the following five key parts.

  • IP8X-PCIE8XG201
    • Internal eight PCIe x1 to PCIe x8 Gen 2 Switch Host Card.
  • Four DU3-IPCIE2XG211
    • Eight PCI Express to USB 3.0 Single Chip Host Controllers
  • Four CB-00592
  • 19-inch rack mount 1U chassis
    • Supports rack mounting depth is 511/529/664mm
  • Built-in 800W AC (100-240V, 47-63Hz) to DC Switching Power Supply

Utilizing the standard PCI Express Switch, the 16-Lane/16-Port PCI Express Switch provides the most efficient fan-out solution for integrating eight PCI Express to USB 3.0 Single Chip Host controllers into a small board design. Each USB 3.0 to PCI Express Single Chip Host controller takes advantages of 5 Gbps burst rate of 8-lane PCI Express bus in both directions and is fully compliant with PCI Express Base specification r2.0. This solution provides full PCI Express and USB 3.0 functionality and performance.
Technical Specifications

 Physical Status

Form Factor

19-inch rack mount 1U chassis

 Power Supply

Feature

Built-in 800W AC (100-240V, 47-63Hz) to DC Switching Power Supply. (PS-00051)

  • Power Supply: 800W
  • Input: AC 100-240V, 47-63Hz
  • Output:
    +5V/25A, +3.3V/25A (+5V and +3.3V not excced 40A)
    +12V/57A
  • Safety: UL, CUL, TUV, CCC

 Drive bay
Number of Drives Two (HDDs not included)
Drive Size
  • Two 2.5 inch
  • One 3.5 inch + One 2.5 inch
 Fan
Number of Fans Three
Size 40*40*28mm
Bearing Ball Bearing
Voltage DC12V
RPM 9200
CFM 15.3
dBA 40
Safety UL(E77551), CUR(E77551), TUV
Pin

 Front Panel I/O

USB3.0 Port

Octad channel ((Fresco FL1100-1Q0-EX x 8) 32-port (4-port x 8) USB 3.0

  • USB 3.0 cable port (Standard A-type Receptacle) lock mechanism
 Mainboard Requirements
Form Factor mini-ITX
Platform Requirements Equipped with a PCIe x16 slot (Gen 2.0 x8 or x16 mode)

 Back Panel I/O

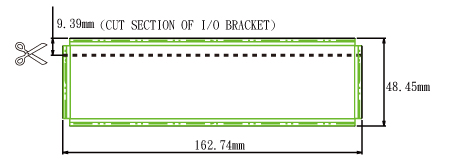

I/O Bracket

Physical Dimensions
  • The size of 19-inch rack mount 1U chassis
  • 444(W) x 44(H) x 502(D)mm
  • N.W.: 7.5 KG
Kit includes
  • US1UI-32U3BC00
  • AC power cord 6 feet length (option)
    • North America Plug (NEMA 5-15) --- CB-00260-02
    • Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • British Standard Plug (BS 1363) --- CB-00103
    • Australia Plug (AS3112) --- CB-00272
  • Two Rear Mounting Brackets
    • Supports rack mounting depth is 511/529/664mm (S-EC-00559-00-1620)
  • Driver CD
  • Manual
