Highlights
  • 5.25" ODD Form Factor
  • One PCIe x16 Slot (x4 mode)
    • Supports 4-lane PCI Express Bandwidth
  • Provides the PCI Express expansion solution for PCI Express x4 Host Card
Introduction

DB525-PCIED2XD01 is a PCI Express (PCIe) Add-On card docking system for IP8X-PCIE8XG201, IP4X-PCIE4XG201, IPCIE1XCA01, E&IP4X-PCIE8XG201 and QU3IP4X-PCIE8XG201. The DB525-PCIE4X01 provides a PCIe x16 Slot (x4 mode) and two Dual-lane Internal PCIe Ports (IOI Proprietary) in connection to the PCIe switch host card.  Designed to have with  the standard size of 5.25" ODD Form Factor, DB525-PCIED2XD01 enables the user to have more PCI Express slot for the capability of installing more PCIe HBA.

Technical Specifications
  • Upstream Host Connectors: Two IOI Proprietary Dual-lane Internal PCIe Ports
    • 10X2_19pin Header (Pitch=2.0mm)
    • 2-Lane PCIe (Two PCIe x1)
  • Downstream Internal PCIe Bus interface:
    • One PCIe x16 Slot (x4 mode)
    • Supports 4-lane PCI Express Bandwidth
  • Power Connector: SATA 15pin Power Connector
  • Dimensions
    • 5.25" ODD Form Factor
    • 146.6(W) x 42(H) x 175 (D) mm
    • NW: 380g
Applications

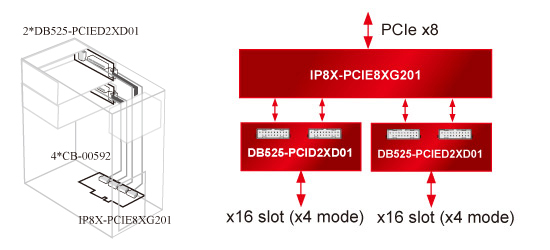

PCIe x8 to Dual PCIe x16 slot (x4 mode)
Model No: IP8X-4X&4X

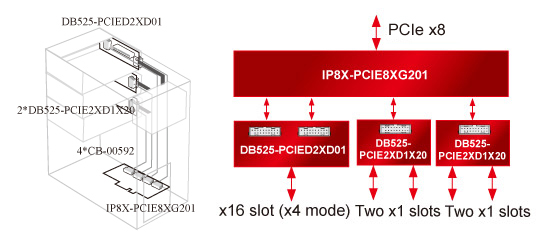

PCIe x8 to PCIe x16 slot (x4 mode) & Four PCIe x1 slots
Model No: IP8X-4X&2D1X

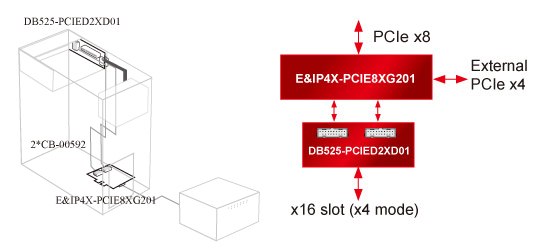

PCIe x8 to ePCIe x4 & PCIe x16 slot (x4 mode)
Model No: E&IP4X-4X

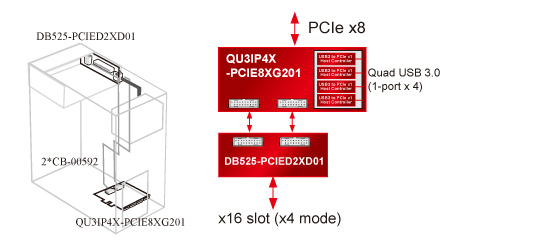

PCIe x8 to Quad USB 3.0 & PCIe x16 slot (x4 mode)
Model No: QU3IP4X-4X

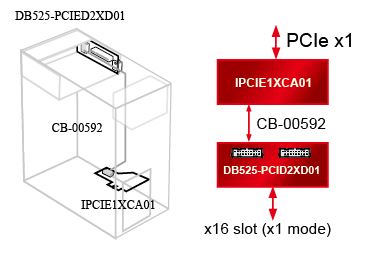

PCIe x1 to one PCIe x16 (x1 mode) slot (For Graphics Card Solution)

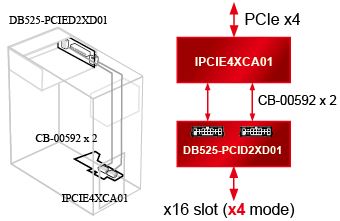

PCIe x4 to PCIe x16 (x4 mode) slot (For Graphics Card Solution)
