Highlights
  • One 5.25" ODD form factor
  • Two PCIe x1 slots
    • Compliant with PCI Express base specification revision 2.0
    • PCIe Gen 2: 5 Gbps
  • Provides the PCI Express expansion solution for PCI Express x1 host cards
Introduction

DB525-PCIE2XD1X20 is integrated by the following two key parts.

  • 5.25" ODD form factor metal bay(50EC-00547-00)
  • IPCIE2XD1X20 Adapter Board

DB525-PCIE2XD1X20 is a PCI Express (PCIe) Add-On card docking system for IP8X-PCIE8XG201, IP4X-PCIE4XG201, E&IP4X-PCIE8XG201 and QU3IP4X-PCIE8XG201. The DB525-PCIED2XD1X20 provides two PCIe x1 slots and one dual-lane Internal PCIe ports (IOI Proprietary) in connection to the PCIe switch host card.  Designed to have with  the standard size of one 5.25" ODD form factor, DB525-PCIE2XD1X20 enables the user to have more PCI Express slot for the capability of installing more PCIe HBA.

Technical Specifications
  • Upstream host connectors: One dual-lane Internal PCIe ports ( IOI Proprietary)
    • 10X2_19pin Header (Pitch=2.0mm)
    • 2-lane PCIe (Two PCIe x1)
  • Downstream Internal PCIe bus interface:
    • Two PCIe x1 slots
    • Supports 1-lane PCI Express bandwidth
  • Power connector: One SATA 15pin power connector
  • Dimensions
    • One 5.25" ODD form factor
    • 146.6(W) x 42(H) x 175 (D) mm
    • NW: 343g
Applications

PCIe x8 to PCIe x16 slot (x4 mode) & Four PCIe x1 slots
Model No: IP8X-4X&2D1X

PCIe x8 to ePCIe x4 & Four PCIe x1 slots
Model No:E&IP4X-2D1X

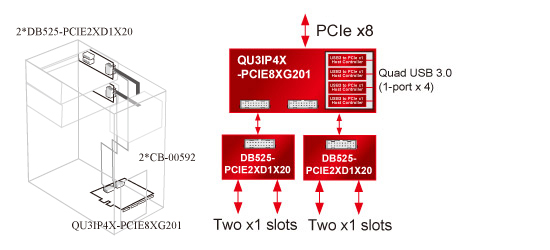

PCIe x8 to Quad USB 3.0 & Four PCIe x1 slots
Model No:QU3IP4X-2D1X

PCIe x4 to four PCIe x1 slots
Model No: IP4X-2D1X

  • IP4X-PCIE4XG201
  • Two DB525-PCIE2XD1X20
  • Two CB-00592
