Highlights
  • Primary PCIe Connector: Two Mini-SAS HD 4i Receptacle Connectors (SFF-8643)
  • Secondary PCIe Connector: PCIe x16 Slot Supports 8-lane PCI Express Bandwidth
  • Power Connector
    • SATA 15pin Power Connector
    • JST compatible wafer 2pin
  • Power Switch
    • JST compatible wafer 2pin (pitch=2.5mm) connector for power control (12V, 3.3V)
Introduction

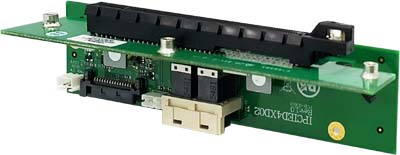

IPCIED4XD02 is a Mini-SAS HD (SFF-8643) to PCIe x16 (x8 mode) Slot Board, The IPCIED4XD02 provides one PCIe x16 (x8 mode) in connection to the PCIe switch host card (QIP4X-PCIE8XG301).

Technical Specifications



Primary PCIe Connector
  • Two Mini-SAS HD 4i Receptacle Connectors (SFF-8643)
    • PCIE1 (PCIe 0~3)
    • PCIE2 (PCIe 4~7)

Secondary PCIe Connector

  • PCIe x16 slots
  • Supports 8-lane PCI Express bandwidth

Power connector

  • SATA 15pin power connector for 12V & 3.3V
  • JST compatible wafer 2pin (pitch=2.0mm) for 3.3Vaux
Power switch
  • JST compatible wafer 2pin (pitch=2.5mm) connector for power control (12V, 3.3V)

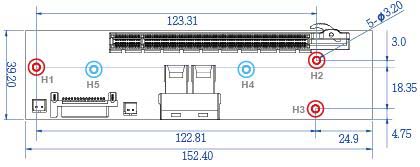

Tooling hole
(uint:mm)

H1~3: Tooling holes for IPCIED4XD02
H4~5: Tooling holes for IPCIE8XCA01R

Dimensions
  • 39.2(W) x 152.4(D) mm
  • NW: 48.7g

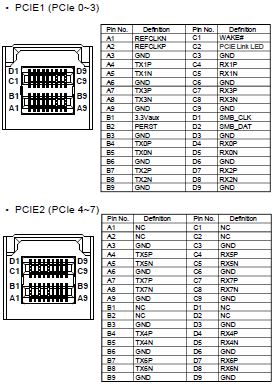

Pin Assignment
Related Products
  • QIP4X-PCIE8XG301
    • Internal Quad PCIe x4 (four SFF-8643 Connectors) to PCIe x8 Gen 3 Switch Host Card
  • QIP4X-PCIE16XB01
    • PCI Express x16 Bifurcation Riser Card
  • IPCIE8XCA01R
    • PCI Express x8 Pasive Slot Adapter
  • CB-S0017
    • Mini-SAS HD 36 pin (SFF-8643) Cable, 85ohm, L = 50cm
Kit includes



  • IPCIED4XD02
    • Mini-SAS HD (SFF-8643) to PCIe x16 (x8 mode) Slot Board
  • Option
    • IPCIE8XCA01R (option)
      • PCI Express x8 Pasive Slot Adapter

      CB-S0017 (option)

      • Mini-SAS HD 36 pin (SFF-8643) Cable, 85ohm
