Highlights
  • 5.25" ODD (Optical Disk Drive) form factor
  • PCIe x8 Slot Supports 4-lane PCI Express Bandwidth
Introduction

DB525-D8XF014XXYY integrated two Mini-SAS HD (SFF-8643) 4i plug to PCIe x8 Slot (PCIe x4 mode) Cables into a 5.25" ODD Form Factor metal case.

The DB525-D8XF014XXYY provides two PCIe x4 in connection to the PCIe switch host card (QIP4X-PCIE8XG301 or QIP4X-PCIE16XB01).
Technical Specifications
Upstream
  • Two Mini-SAS HD (SFF-8643) 4i plug
    • 85ohm, 36pin (pitch=0.75)

Downstream

  • Two PCIe x8 slots (PCIe x4 mode)

Power Cable
  • One SATA 15pin power connector (Supply 12V & 3.3V for PCIe Slots)
Form factor
  • One 5.25" ODD form factor
  • 146.6(W) x 42(H) x 175 (D) mm
  • NW: 400g

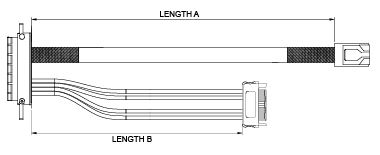

Part No. XX=LENGTH A (to SFF-8643) YY=LENGTH B (to Power)
DB525-D8XF0147015 70cm 15cm
