Highlights
  • Two PCIe x4 Slots Supports 4-lane PCI Express Bandwidth
  • Two SFF-8643 Connectors (85ohm)
  • 3.3Vaux Power Input & Output Connectors
Introduction

DIPCIE4XD01 is a Mini-SAS HD (SFF-8643) to PCIe x4 Slots Board, The DIPCIE4XD01 provides two PCIe x4 in connection to the PCIe switch host card (QIP4X-PCIE8XG301 or QIP4X-PCIE16XB01).
Technical Specifications



Upstream host connector
  • Two SFF-8643 Connectors
    • 85ohm, 36pin (pitch=0.75)
    • 4-Lane PCIe

Downstream Internal PCIe bus interface
  • Two PCIe x4 slots
  • Supports 4-lane PCI Express bandwidth

Power connector
  • One SATA 15pin power connector (Supply 12V & 3.3V for PCIe Slots)
  • Two JST Wafer 2pin (3.3Vaux Power Input & Output)
Dimensions

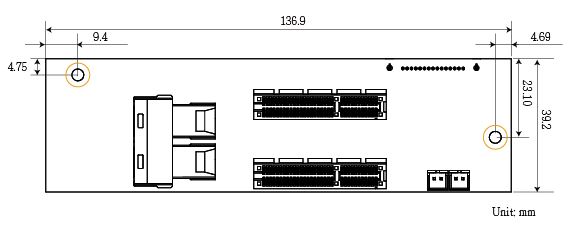

  • 39.2(W) x 136.9(D) mm

Pin Assignment
Related Products
  • QIP4X-PCIE8XG301
    • Internal Quad PCIe x4 (four SFF-8643 Connectors) to PCIe x8 Gen 3 Switch Host Card
  • QIP4X-PCIE16XB01
    • PCI Express x16 Bifurcation Riser Card
  • CB-S0017
    • Mini SAS HD 36 pin (SFF-8643) Cable, 85ohm, L = 50cm
  • DB525-DIPCIE4XD01
    • Dual SFF-8643 to PCIe x4 Slots Docking Bay (5.25 inch ODD Form Factor)
