DIPCIE4XM222 Two PCIe M.2 sockets docking bay

Highlights

SFF-8654 4x to M.2 (PCIe x4) 2-in-1 Adapter Board
- Two SFF-8654 4x Connectors
  - 4-Lane PCIe
- Two M.2 (Socket 3 Key M PCIe-based SSD Module Pinout)
  - Supports the following type M.2 PCIe SSD :
    - Type 2230: 30mm(L) x 22mm(W)
    - Type 2242: 42mm(L) x 22mm(W)
    - Type 2260: 60mm(L) x 22mm(W)
    - Type 2280: 80mm(L) x 22mm(W)
    - Type 22110: 110mm(L) x 22mm(W)
- Power Input: It requires +12V power only
  - SATA 15pin Power Connector
  - Walkman-type 2.0 mm DC Jack

Introduction

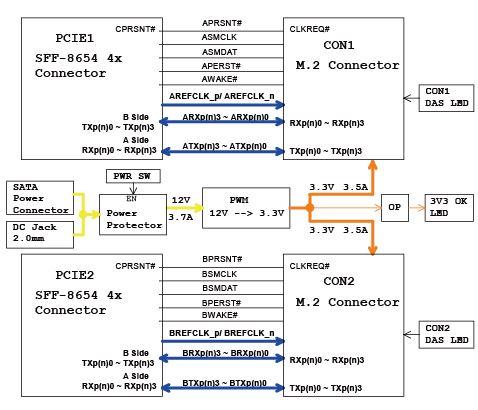

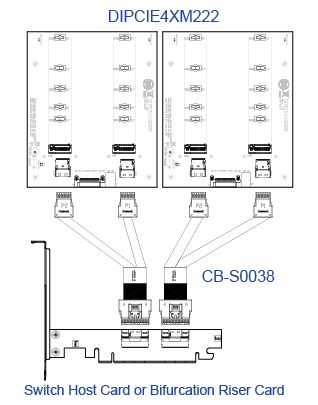

DIPCIE4XM222 is a SFF-8654 4x to M.2 (PCIe x4) 2-in-1 Adapter Board, The DIPCIE4XM222 provides two M.2 (Socket 3 Key M PCIe-based SSD Module Pinout) in connection to Two SFF-8654 4x ports . For all those without M.2 (Socket 3 Key M PCIe-based SSD Module Pinout) on their computers, this is an useful solution for installing all kind of M.2 PCIe SSD Modules. It provides Multiple SFF-8654 4x (38pin) Connectors in connection to the PCIe Gen 3/4 Switch Host Cards (QIP2X-PCIE8XG302, QIP2X-PCIE4XG302) or PCIe Bifurcation Riser Cards (DIP8X-PCIE16XB02 , QIP4X-PCIE16XB03).

Technical Specifications

Upstream Host Connector	Two SFF-8654 4x (38pin) Connectors 4-Lane PCIe
Downstream Internal PCIe Bus Interface	Two M.2 (Socket 3 Key M PCIe-based SSD Module Pinout) Supports M.2 PCIe SSD Module M.2 PCIe-based SSD with M Key (including B+M Key) Module card Types: Type 2230: 30mm(L) x 22mm(W) Type 2242: 42mm(L) x 22mm(W) Type 2260: 60mm(L) x 22mm(W) Type 2280: 80mm(L) x 22mm(W) Type 22110: 110mm(L) x 22mm(W)
LEDs	3V3 Power Indicator LED (3.15V~3.45V) DAS (Drive activity Signal) LED
Power Input	It requires +12V power only SATA 15pin Power Connector Walkman-type 2.0 mm DC Jack
Power Switch	Rocker Switch (Power ON/OFF) JST compatible wafer 2pin (pitch=2.5mm) connector
Dimensions	153(W) x 127(D) mm NW: g
