Highlights
  • Upstream: SFF-8654 4x (38pin) Connector
    • 4-Lane PCIe
  • Downstream: PCIe x4 Slot
    • Supports 4-lane PCI Express Bandwidth
  • Power Connectors
    • One SATA 15pin power connector (Supply 12V & 3.3V for PCIe Slot)
    • Two JST Compatible 2pin Wafer (Supply 3.3Vaux Power for PCIe Slot)
Introduction

DIPCIE4XD11 is SFF-8654 4x (38pin) to PCIe x4 Slot 2-in-1 Expansion Board. It provides SFF-8654 4x (38pin) Connector in connection to the PCIe Switch Card (QIP2X-PCIE8XG302)

Technical Specifications
Upstream host port
  • SFF-8654 4x Connector
    • 85ohm, 38pin
    • 4-Lane PCIe
    • SFF-9402 Compliant Connector Pinout

Downstream expansion port
  • PCIe x4 Slot
    • Supports 4-lane PCI Express Bandwidth

Power connector
  • One SATA 15pin power connector (Supply 12V & 3.3V for PCIe Slot)
  • Two JST Compatible 2pin Wafer (Supply 3.3Vaux Power for PCIe Slot)

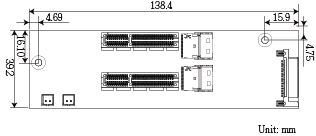

Dimensions
  • 138.4x39.2mm
  • NW: 32.2g

Related Products
  • EC-00547-0X---5.25 inch ODD Form Factor Metal Case
  • CB-S0036 ---SlimSAS 4i (SFF-8654) plug to SlimSAS 4i (SFF-8654) plug 85ohm Cable
  • CB-S0038---SlimSAS 8i (SFF-8654) plug to two SlimSAS 4i (SFF-8654) plug 85ohm Y-Cables
  • QIP2X-PCIE8XG302---Dual PCIe x4 (two SFF-8654 x4 38pin) to PCIe x8 Gen 3 Switch Host Card
Application

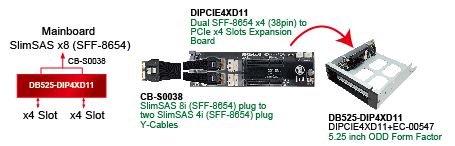

Convert SlimSAS x8 (SFF-8654) to two PCIe x4 Slots (please be noted that your mainboard needs to have PCIe bifurcation mode support.)
