Highlights
  • PCIe x16 to x4, x4, x8 Docking Board
    • PCIe x16 Gen 5.0 Slots
      • Slot4: PCIe x16 Slot (Slot4) for Target Cable Adapter or DPU (Super NIC)
      • Slot1 & Slot2: x4 mode
      • Slot3: Metal-Reinforced Type x8 mode
  • Dimension: 81.28(W) x 193(L) mm
Introduction

PCIEX16D04-448 is PCIe x16 to one PCIe x16 (x8 mode) Slot & two PCIe x16 (x4 mode) Slots Expansion Docking Board.

The PCIe Gen 5 slots are backward compatible and support PCIe Gen 5/4/3/2 add-in card, Target Cable Adapter, and DPU (Super NIC).

It supports the following applications.

  • External PCIe Cabling Application:
    A PCIe docking board extends the PCIe slot from the motherboard to an external enclosure.
  • PCIe Fanout Application:
    A PCIe docking board is used for interfacing a DPU (Super NIC) with a PCIe add-in card.
Technical Specifications
  • Slot4: PCIe x16 Gen 5 Slot
    • For Target cable adapter or DPU (Super NIC)
  • Slot1 & Slot2: PCIe x16 Gen 5 Slots (x4 mode)
    • For PCIe Add-in Card
  • Slot3: PCIe x16 Gen 5 Slots Metal-Reinforced Type (x8 mode)
    • For PCIe Add-in Card
  • ATXPWR1: Main Power Connector (ATX 24-pin Right Angle Type)
  • ATX12V1: +12V Power Connector (ATX 2x2 Right Angle Type)
  • FAN Power Connectors: Friction Lock 3pin (pitch=2.54mm) Right Angle Header
  • J1: Power LED Header
  • J2: Power Switch Header
  • J3: SMbus Header for PCIe Slot4
  • SW1-3, SW1-4: SMbus Slave Address Setting Switch
    • Slot3: SMBus0
    • Slot1: SMBus1
    • Slot2: SMBus2

      Slave Address
      A1 A0

      		 SW1-3 SW1-4
      0 0

      0xE0 W
      0xE1 R

      		 ON ON
      0 1

      0xE2 W
      0xE3 R

      		 ON OFF
      1 0

      0xE4 W
      0xE5 R

      		 OFF ON
      1 1

      0xE6 W
      0xE7 R

      		 OFF OFF
  • SW1-1, SW1-2: PCIe Refclk Source selection:
    • REFCLK Source Setting Switch (SW1-1)
      SW1-1 REFCLK Note
      OFF From Slot4 The REFCLK of Slot1 ~ Slot3 are from Slot4 PCIe Card
      ON CFC(100MHz) All PCIe Slots (Slot1~Slot4) are from on-board Clock Generator
    • CFC (100MHz) Setting Switch
      SW1-1 SW1-2 CFC (100MHz)
      ON ON -0.5% spread
      ON OFF Spread Off
    • Dimensions
      • 81.28(W) x193(L) mm

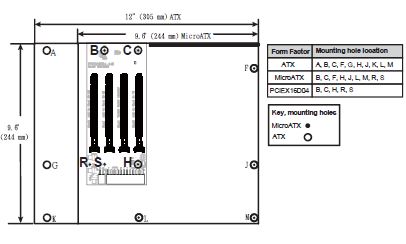

      • It suits for ATX Form Factor Mounting
      • NW: 113.2g
Applications

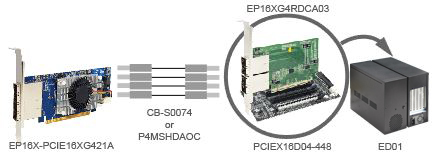

  • EP16X-PCIE16XG421A---External PCI Express x16 (SFF-8674 1x4) to PCIe x16 Gen 4 Switch Host Card
  • EP16XG4RDCA03---External PCI Express (two SFF-8644 1x2) to PCIe x16 Edge Finger Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
  • CB-S0074---PCIe Gen 4 External Mini-SAS HD (SFF-8644) 4x plug 100ohm Cable
  • P4MSHDAOC PCIe Gen 4 External Mini SAS HD (SFF-8644) 4x plug AOC
Related Products
  • CB-00781-02 -- ATX 24Pin 1 (PSU Male) to 2 (PSU Female) Y Splitter Power Supply Extension Cable, 20cm
