Highlights
  • Extends USB 3.0 super speed devices up to 100m
  • Electrical signal compliant to USB 3.0 SuperSpeed specification
  • Support USB3.0 hot-plug feature
  • USB 3.0 Standard-A form-factor
    • Standard-A plug
    • Standard-A receptacle
  • Power at host and remote side is required
Introduction

U3AOC-AXLC is USB 3.0 SuperSpeed only (5Gbps) to Duplex LC Active Optical Cable. This is cutting USB 3.0 A AOC , is to remedy the length limited in onsite application. USB 3.0 pure fiber cable , no EMI , support 5Gbps super speed up to 100m max . It is good choice for Medical Systems ,cases need pass through the wall ...etc.

U3AOC-AXLC
Part No. Name Color Length OD
U3AOC-AMLC0200 USB Std-A Plug to Duplex LC Aqua 20cm 2mm
U3AOC-AFLC0200 USB Std-A Receptacle to Duplex LC with L=50cm USB Power Plug Aqua 20cm 2mm
Technical Specifications

Connector
  • Electrical connector: USB 3.0 Standard-A plug, USB 3.0 Standard-A receptacle
  • Optical connector: LC/UPC Duplex
Electrical Signal
  • USB 3.0 SuperSpeed @5Gbps
Optical Signal
  • OM3 Multimode, 850nm/1300nm

Jacket
  • Aqua, LSZH, OD: 2.0±0.5mm
Note
  • USB 2.0 data transmission is not supported
  • Needs to supply bus power to USB Connector

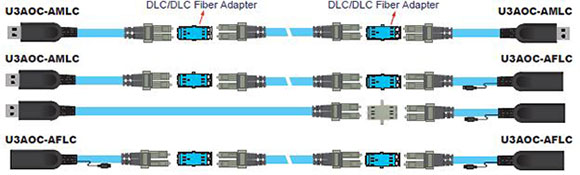

Applications


Kit includes

U3AOC-AMAFK1

  • U3AOC-AMLC0200
  • U3AOC-AFLC0200
  • Two DLC Fiber Adapter
