Highlights
  • Passive PCIe x4 Cable Adapter
  • One PCIe x4 External Cable Connector (iPass x4 compatible)
  • Provides 3.3V for PCIe Active Optical Cable
  • Low Profile PCI Form Factor
Introduction

EPCIE4XCA02 is External PCI Express x4 Passive Cable Adapter Card, it requires no additional software or drivers to operate.

Designed to overcome the limited PCIe connectivity of most desktop computers, the EPCIE4XCA02 can be quickly and easily set up for external expansion.

Technical Specifications
Number of Lane PCIe 4-Lane

External PCIe Connector

  • 38pin iPass (0.8mm pitch) compatible I/O Connector
    • Scalability up to 10Gb/s
      • PCIe Gen I – 2.5Gb/s
      • PCIe Gen II – 5.0Gb/s
    • Durability - 250 cycles
    • Fully shielded to provide maximum EMI/RFI protection
      • Guide to system bezel gasket
      • Cable plug gasket to front face of Guide
    • First mate, last break
    • RoHS compliant
Computer Platform Requirements Desktop computer equipped with a PCIe 1.0/2.0/3.0 x4, x8, x16 slot
Power On Switch 2-pin header (only for EPCIE4XCA02-T)
Pin Assignment
  • 38pin iPass™ (0.8mm pitch) compatible I/O Connector

Pin# Signal Pin# Signal
A1 GND B1 GND
A2 PETp0 B2 PERp0
A3 PETp0 B3 PERn0
A4 GND B4 GND
A5 PETp1 B5 PERp1
A6 PETn1 B6 PERn1
A7 GND B7 GND
A8 PETp2 B8 PERp2
A9 PETn2 B9 PERn2
A10 GND B10 GND
A11 PETp3 B11 PERp3
A12 PETn3 B12 PERn3
A13 GND B13 GND
A14 CREFCLKP B14 3.3V
A15 CREFCLKn B15 3.3V
A16 GND B16 PWR_RTN
A17 SB_RTN B17 PWR_RTN
A18 CPRSNT# B18 CWAKE#
A19 CPWRON B19 CPERST#

Available Models
For Host
EPCIE4XCA02-H
For Target
EPCIE4XCA02-T

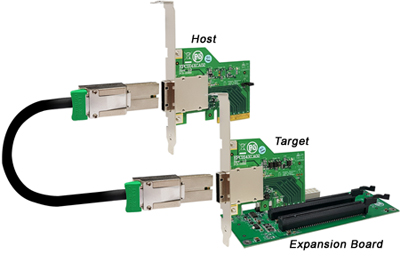

Application
  • Host to Target

Physical Dimensions
  • 63(H)x80(L)mm
  • NW:50g
Related Products

CB-00485-A series--- External PCIe x4 Cable

Model No. AWG Length
CB-00485-A0 28AWG 1.5m
CB-00485-A1 28AWG 1m
CB-00485-A2 28AWG 2.0m
CB-00485-A3 28AWG 3.0m
CB-00485-A4 28AWG 0.5m
CB-00485-A5 28AWG 4m



PCIEX16D01---PCIe x16 Expansion Docking Board

BR-00205-07 --- Low Profile PCI Form Factor
