Highlights
  • Host Bus: PCIe x8 Gen 2 (40.0 Gb/s)
    • Compliant with PCI Express Base Specification Revision 2.0
  • Eight independent USB 3.0 Host Controllers (Renesas uPD720202; USB IF TID 380000043).
    • Compliant with Universal Serial Bus 3.0 specification Revision 1.0
    • Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification Revision 1.0
    • USB 3.0 Host Controller supports one downstream port
  • Eight USB 3.0 Cable Ports (A-type Receptacle); USB IF TID 360000145
    • Provides USB 3.0 cable port lock mechanism


    USB 3.0 Standard A-type lock mechanism

Introduction

The U3X8-EP8XE102E is an Octad channel 8-port (1-port x 8) USB 3.0 to External PCI Express x8 Gen 2 Host Docking

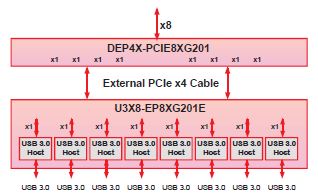

U3X8-EP8XE102E is integrated by the following three key parts (DEP4X-PCIE8XG201, U3X8-EP8XG201E, CB-00485).

  • DEP4X-PCIE8XG201---Dual External PCIe x4 (with PCIe to PCIe Packet Switch) to PCI Express x8 Cable Adapter
    • Upstream: 8-lane PCI Express
    • Downstream: Eight 1-lane PCI Express
  • U3X8-EP8XG201E---Eight channel 8-port (1-port x 8) USB 3.0 to PCI Express x8 Gen 2 Docking
    • Integrated Eight Independent USB 3.0 to PCI Express x1 Gen 2 Host Controllers
    • Each Channel USB 3.0 has one Cable Port
  • Two CB-00485
    • External PCIe x4 Cable

Utilizing the standard PCI Express Switch, the 8-Lane/8-Port PCI Express Switch provides the most efficient fan-out solution for integrating quad PCI Express to USB 3.0 Single Chip Host controllers into a small board design. Each USB 3.0 to PCI Express Single Chip Host controller takes advantages of 5 Gbps burst rate of 8-lane PCI Express bus in both directions and is fully compliant with PCI Express Base specification r2.0. This solution provides full PCI Express and USB 3.0 functionality and performance.

Technical Specifications

DEP4X-PCIE8XG201 (V1.5)

Upstream PCIe interface
  • 8-lane PCI Express
    • PCIe Gen 1 (2.5GT/s)
    • PCIe Gen 2 (5.0GT/s)
Downstream PCIe interface
  • Two 38pin iPass™ (0.8mm pitch) compatible I/O Connectors
    • Scalability up to 10Gb/s
      • PCIe Gen I – 2.5Gb/s
      • PCIe Gen II – 5.0Gb/s
    • Durability - 250 cycles
    • Fully shielded to provide maximum EMI/RFI protection
      • Guide to system bezel gasket
      • Cable plug gasket to front face of Guide
    • First mate, last break
    • RoHS compliant
Key Features
  • Standards Compliant
    • PCI Express Base Specification r2.0 (Backwards compatible with PCIe r1.0a/1.1)
    • PCI Power Management Spec r1.2
    • Microsoft Vista Compliant
    • Supports Access Control Services
    • Dynamic link-width control
    • Dynamic SerDes Speed Control
  • High Performance
    • Non-blocking internal architecture
    • Full line rate on all ports
    • Cut-Thru latency: 160ns for Link widths of x4 to x1
    • Maximum Payload Size - 2,048 bytes
    • Read Pacing (intelligent bandwidth allocation)
    • Dual Cast
    • Dynamic Buffer Pool Architecture for faster credit updates
  • PCI Express Power Management
    • Link power management states: L0, L0s, L1
    • Device power management states: D0 and D3hot
    • Active State Power Management (ASPM)
  • Quality of Service (QoS)
    • Two Virtual Channels (VC) per port
    • Eight Traffic Classes per port
    • Weighted Round-Robin Port & VC Arbitration

Lane Status LEDs

  • Blink: Gen 1 speed
  • Solid: Gen 2 speed



  • Upstream Lane Status LEDs
    • UPCIe LED1 (Lane 0): Upstream x1 Status LED
    • UPCIe LED4 (Lane 3): Upstream x4 Status LED
    • UPCIe LED8 (Lane 7): Upstream x8 Status LED
Switch
  • SW1-1: Non-Transparent Mode
    • OFF: Disabled NT mode (default)
  • SW1-2: Select Upstream NT Port
    • OFF: Port 3 (default)
  • SW1-3&4: Port Configuration Setting
    • 3-OFF&4-ON: Port 1-x1, x1, x1, x1, Port 3-x1, x1, x1, x1(default)
  • SW2-1: Port 1 CWAKE# Setting
    • ON: Enable
    • OFF: Disabled (default, For PCIe AOC)
  • SW2-2: Port 3 CWAKE# Setting
    • ON: Enable
    • OFF: Disabled (default, For PCIe AOC)
  • SW2-3&4: CFC (100MHz) Spread Setting
    • 3-OFF&4-OFF: No Spread (default)
Computer Platform Requirements Desktop computer equipped with a PCIe x8, x16 slot

U3X8-EP8XG201E

Upstream PCIe interface
  • Two External 4-lane PCIe Connectors
    • 38pin iPass™ (0.8mm pitch) compatible I/O Connector
    • Four 1-lane PCIe
USB 3.0 to PCIe x1 Host Controller
  • Integrated Eight Independent USB 3.0 to PCIe x1 Gen 2 Host Controllers (Renesas uPD720202; USB IF TID 380000043)
  • Each USB 3.0 to PCIe x1 Gen 2 Host Controller has one cable port (Standard A-type Receptacle; USB IF TID 360000145)
USB Features
  • Compliant with USB 3.0 Specification Revision 1.0
  • Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification Revision 1.0
  • Supports UASP (USB Attached SCSI Protocol)
  • Supports two downstream ports
  • Each USB port supporting SS/HS/FS/LS data rates (5Gbps/ 480Mbps/ 12Mbps/ 1.5Mbps)
USB Data Transfer Rate
  • Low-speed (1.5 Mbps)
  • Full-speed (12.0 Mbps)
  • High-speed (480.0 Mbps)
  • Super-speed (5.0 Gbps)
LEDs
  • Front Panel
    • Eight USB Vbus LEDs
  • Back Panel
    • Power Status LED (ON/OFF)
    • 3.3Vaux LED (Ready)

Power Input

  • U3X8-EP8XG201E1 Power
    • DC Power input Connector: Walkman-type 2.0 mm DC Jack
    • Power Input Range: DC 12V
  • U3X8-EP8XG201E2 Power
    • DC Power input Connector: MINI-COMBICON Header
    • Power Input Range: DC 12V
Physical Dimensions
  • 146.6(W) x 42(H) x 200 (D) mm
  • NW: 939.6g



Available Models

U3X8-EP8XE102E1

  • DC Power input Connector: Walkman-type 2.0 mm DC Jack

U3X8-EP8XE102E2

  • DC Power input Connector: MINI-COMBICON Header
Computer Platform
  • Computer with PCI Express slot ( x8, x16)

Note:
For the best performance (5.0 Gbps), It should be installed in a PCIe Gen 2 compliant slot in the host computer.  Most computers have PCIe Gen 2 (5.0 Gbps) throughput on x8 or x16 slots.
A PCIe Gen 1 compliant slot reaches up to 2.5 Gbps throughput

>
Operating System Requirements
  • If OS is Windows 8 or later , there are inbox driver for Renesas USB 3.0 Host Controller. OS will detect the presence of new hardware and then install Renesas USB 3.0 Host Controller driver automatically.
  • USB 3.0 Host Drivers Kit (x86 and x64) for
    • Windows XP
    • Windows Vista
    • Windows 7
    • Windows Server 2008 Release 2
Kit includes

U3X8-EP8XE102E1 xx y

  • U3X8-EP8XG201E1
  • DEP4X-PCIE8XG201
  • xx: PS-00025-03 --- AC to DC Power Adapter (12V/5A)
    • AC power cord 6 feet length (option)
      • US: North America Plug (NEMA 5-15) --- CB-00260-02
      • EU: Europe Plug (CEE 7-VII Schuko) --- CB-00264
      • UK: British Standard Plug (BS 1363) --- CB-00103
      • AU: Australia Plug (AS3112) --- CB-00272
  • y: External PCIe x4 Cable
    • 0: two CB-00485-A0--- External PCIe x4 Cable 1.5m length
  • Manual

Example

  • U3X8-EP8XE102E1US0
    • US: AC power cord 6 feet length North America Plug (NEMA 5-15) --- CB-00260-02
    • 0: two CB-00485-A0--- External PCIe x4 Cable 1.5m length

U3X8-EP8XE102E2 y

  • U3X8-EP8XG201E2
  • DEP4X-PCIE8XG201
  • y: External PCIe x4 Cable
    • 0: two CB-00485-A0--- External PCIe x4 Cable 1.5m length
  • Manual

Example

  • U3X8-EP8XE102E20
    • 0: two CB-00485-A0--- External PCIe x4 Cable 1.5m length
