Highlights
  • Internal PCIe (four SFF-8654 4x 38pin) to PCI Express x16 Bifurcation Riser Card
    • PCIe x16 Edge Finger
    • Internal PCIe Cable Port (four SFF-8654 38pin Connector)
  • PCI Express Bifurcation modes (Mainboard needs to have PCIe bifurcation mode support.)
    • Two PCIe Slots (x8, x8)
    • Three PCIe Slots (x8, x4, x4 or x4, x4, x8)
    • Four PCIe Slots (x4, x4, x4, x4)
  • Supports Low Profile PCI Form Factor (Low Profile PCI Bracket S-BR-00248-11-1020)
Introduction

QIP4X-PCIE16XB03 is Internal PCIe (four SFF-8654 4x 38pin) to PCI Express x16 Bifurcation Riser Card.

PCI Express bifurcation means splitting the PCI Express bus into smaller multi-slots . For example, one x16 PCI-Express Port can be bifurcated into two x8 PCI-Express Ports, each of which can be further bifurcated into two x4 PCI-Express Ports, and so on. This can be achieved from BIOS level if you want to split an existing lane.

The PCI-Express Bifurcation mode allows users to take advantage of a single PCI-Express x16 slot, through the use of QIP4X-PCIE16XB03, and transform their PCI-Express slot into the following modes:

  • Two PCIe Slots (x8, x8)
  • Three PCIe Slots (x8, x4, x4 or x4, x4, x8)
  • Four PCIe Slots (x4, x4, x4, x4)

Please be noted that your mainboard needs to have PCIe bifurcation mode support.

Related Products : SlimSAS 4i (SFF-8654) plug Cable, DB525-IP16XD11-8
Technical Specifications
PCIe Host Port
  • PCIe x16 Edge Finger

Internal PCIe Port
  • Four SFF-8654 4x 85ohm 38pin Connectors

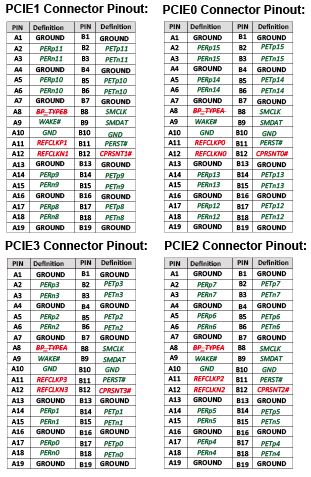

    • Connector Pinout

Power outlet

(Rev 1.2 or later)
  • 3V3aux Power Outlet: JST Wafer 2pin (2.0mm)
  • Power Connector:
    • MINI-COMBICON Header
    • Power Output Range: DC 3.3V

Switch to enable REFCLK
SW1 REFCLK Enable Auto*
1 PCIE0 ON OFF
2 PCIE1 ON OFF
3 PCIE2 ON OFF
4 PCIE3 ON OFF

*Auto: Enable by CPRSNT# (SFF-8654 Connector Pin B12)
SMbus Slave Address Setting Switch

Slave Address
A1 A0

 SW2-1 SW2-2 SW2-3 SW2-4
0 0

0xE0 W
0xE1 R

 ON ON X X
0 1

0xE2 W
0xE3 R

 OFF ON X X
1 0

0xE4 W
0xE5 R

 ON OFF X X
1 1

0xE6 W
0xE7 R

 OFF OFF X X
Available Models
with PCI Bracket
4xQIP4X-PCIE16XB03P		 without PCI Bracket
4xQIP4X-PCIE16XB03		 without sideband
4xQIP4X-PCIE16XB03N
Computer Platform
  • Computer with PCI Express slot ( x16) supporrt PCIe bifurcation mode.

Note: Please verify with your mainboard manufacturer (such as Intel, Gigabyte, Supermicro, Portwell, Axiomtek, ASRock ...) to make sure the mainboard is bifurcated.
Physical Dimensions
  • 24.4(H)x153.7(L)mm
  • NW: 36.7g
Optional Accessories
  • Low Profile PCI Bracket (S-BR-00248-11-1020)
Certifications
  • CE Test: Pass
  • FCC Test : Pass
  • VCCI Test: Pass
  • RCM Test: Pass


Kit includes
  • 1xQIP4X-PCIE16XB03
    • 4xQIP4X-PCIE16XB03P
    • Manual
Related Products
  • DIPCIE4XD11---Dual SFF-8654 4x (38pin) to PCIe x4 Slots Expansion Board

  • IPCIE16XD11-8--- Multiple SFF-8654 4x (38pin) to PCIe x16 Slot Expansion Board

    PCie x16 to Dual PCIe x8 Slots expansion

  • IPCIE16XD11--- Multiple SFF-8654 4x (38pin) to PCIe x16 Slot Expansion Board

    PCie x16 to Dual PCIe x8 Slots expansion

  • DIPCIE4XM222---SFF-8654 to M.2 (Socket 3 Key M PCIe-based SSD Module Pinout) 2-in-1 Docking Board

  • SlimSAS 4i (SFF-8654) Cable---SlimSAS 4i (SFF-8654) plug to SlimSAS 4i (SFF-8654) plug 85ohm Cable

  • SlimSAS 4i (SFF-8654) to U.2 Cable---SlimSAS 4i (SFF-8654 38P) plug to U.2 Receptacle (SFF-8639 68P) 85ohm Cable with SATA Power


Application

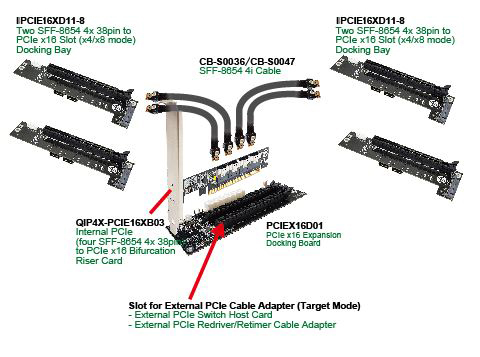

Support four GPUs

External PCIe GPUs Docking

  • IPCIE16XD11-8--- Multiple SFF-8654 4x (38pin) to PCIe x16 Slot Expansion Board
  • PCIEX16D01---PCIe x16 Expansion Docking Board
