Highlights
  • External PCIe x16 (SFF-8674 1x4) to PCIe x16 Gen 4 Switch Host Card
    • Design with Microchip
      • PCIe Switch Supports PCIe Gen 1.0, 2.0, 3.0, 4.0
    • Upstream: PCIe x16 Edge Finger
    • Downstream: External PCIe Gen 4 Cable Ports (SFF-8674 1x4 Connector)
  • Supports port bifurcation, the following multiple Port configurations
    • x16, x16
    • x16, x8 x8
    • x16, x4 x4 x4 x4
    • x16, x2, x2, x2, x2, x2, x2, x2, x2
    • x16, x8, x2, x2, x2, x2
    • x16, x4, x4, x2, x2, x2, x2
    • x16, x8 x4 x4
  • Supports both Copper and AOC Cables
    • CB-S0074: PCIe Gen 4 External Mini-SAS HD (SFF-8644) 4x plug Cable
    • P4MSHDAOC: PCIe Gen 4 External Mini SAS HD (SFF-8674) 4x plug AOC
  • Supports Low Profile PCI Form Factor
Introduction

EP16X-PCIE16XG421A is External PCIe x16 (SFF-8674 1x4) to PCIe x16 Gen 4 Switch Host Card, it requires no additional software or drivers to operate.

Utilizing the standard PCI Express Switch, the 36-Lane/20-Port PCI Express Gen 4 Switch provides the most efficient fan-out solution.
The EP16X-PCIE16XG421A supports the following multiple Port configuration options:

  • x16, x16
  • x16, x8 x8
  • x16, x4 x4 x4 x4
  • x16, x4, x4, x2, x2, x2, x2
  • x16, x2, x2, x2, x2, x2, x2, x2, x2
  • x16, x8, x2, x2, x2, x2
  • x16, x8 x4 x4

In particularly rugged environments, your desktop computer can be placed at a secure location up to 100 meters away (using PCIe A.O.C). High-performance and reliable communication are maintained with the well-shielded extension cable or A.O.C (Active Optical Cable).

Note: The device paired with EP16X-PCIE16XG421A must supply 3.3V to the PCIe Gen 4 AOC cable
Technical Specifications
Upstream PCIe Interface
  • 16-lane Edge Finger

Downstream PCIe Interface

  • Four External PCIe Gen 4 Cable Ports
    • SFF-8674 1x4 Connector
Key Features
  • High-Performance
    • 36-lane variants
    • Ports bifurcate from to x2/x4/x8/x16 lanes
    • Supports multicast groups per port
  • High-Speed I/O
    • PCIe Gen4 16 GT/s
    • Supports PCIe-compliant link training and manual PHY configuration
  • Power Management
    • Active State Power Management (ASPM)
    • Software-controlled power management
  • DMA Controller
    • High-performance, ultra-low latency DMA engine
Switch
  • Side Band Selection
    • PCI SIG Compliant
  • PCIe Port Configuration Selection
    • x16, x16
    • x16, x8 x8
    • x16, x4 x4 x4 x4
    • x16, x4, x4, x2, x2, x2, x2
    • x16, x2, x2, x2, x2, x2, x2, x2, x2
    • x16, x8, x2, x2, x2, x2
    • x16, x8 x4 x4
Power consumption < 20W at 32 active Gen4 links
LEDs
  • PCIe switch heartbeat LED (Blue)
  • PCIe switch failure LED (Green)
  • Port unlink LED (Red)
Computer Platform Requirements Desktop computer equipped with a PCIe 1.0/2.0/3.0/4.0 x16 slot
Physical Dimensions
  • Dimensions: 180mm (L) x 68mm (W)
  • NW: 147.5g

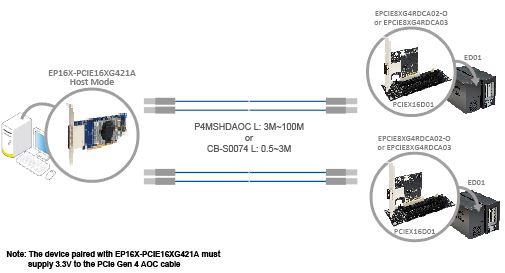

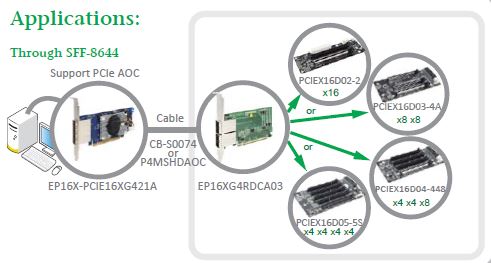

Application

Mode: x8 x8


Optional Accessories
  • Target : External PCI Express to PCIe x8 Gen 5 RedriverCable Adapter (EPCIE8XG4RDCA02-O) --Support PCIe AOC Cable
  • PCIe x16 Expansion Docking Board (PCIEX16D01)

  • PCIe Gen 4 External Mini-SAS HD (SFF-8674) 4x plug 100ohm Cable (CB-00074)

  • PCIe Gen 4 External Mini SAS HD (SFF-8674) 4x plug AOC (Active Optical Cable) (P4MSHDAOC)


Kit includes

EP16X-PCIE16XG421A

  • EP16X-PCIE16XG421A
  • Manual
