Highlights
  • Supports four PCI Cutouts
  • PCIe x16 Slot (Metal-Reinforced Type)
    • Supports Standard height, full length Add-in Card (111.15 x 312mm)
    • Supports 3-Slot GPU Card
  • Power Supply: 600W
Introduction

ED01-2B-P1 is External PCIe x16 Gen 4 Expansion Enclosure.
The PCIe x16 2-slot Docking Board (PCIEX16D11) provides two PCIe x16 Slots (one for Target Cable Adapter and one for Add-in Card). ED01-2B-P1 expands PCI Express connectivity from your desktop computer, enabling seamless, high performance, and reliable control of PCIe x4, x8, x16 Add-in Card.
No additional software or drivers are needed – the remote devices operate as if they were directly installed in your computer. Designed to overcome the limited PCIe connectivity of most desktop computers, the ED01-2B-P1 can be quickly and easily.

Technical Specifications
Slot1 for Add-in Card
  • PCIe x16 Slot (Metal-Reinforced Type)
    • Support Full-length PCI Form Factor
    • Support 3-Slot/Triple width GPU Card

Slot2 for Target Cable Adapter (option)
  • 8B: EPCIE8XG4RDCA02
    • External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
  • HB: EPCIE16XG4RDCA02
    • External PCI Express (two SFF-8644 1x2) to PCIe x16 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
Indicator LEDs Power LED (Green) in front panel
Power Power Switch (ON/OFF) in front panel
Cooling Fan 8cm x 8cm in front panel

Power Supply

  • P1: 600W
    • Input: AC 100-240V, 50-60Hz
    • Output:
      +5V/15A, +3.3V/15A ( The maximum combined load on +3.3V and +5V outputs shall not exceed 80W.)
      +12V/50A (The +12V maximum load shall not exceed 600W)
    • Power Plug:
      • PCIe Graphics Card 8pin x 2 pcs
      • PCIe Graphics Card 8(6+2)pin x 2 pcs
Form Factor 12.3 x 35.9 x 23(H) cm
NW 4KG (Unit Package:5KG)
Available Models

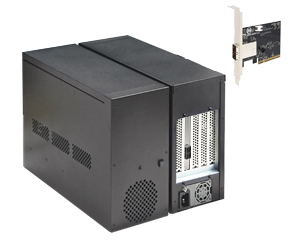

  • ED01-2B-P18B1: External PCIe x16(x8 mode) Expansion Docking Enclosure with EPCIE8XG4RDCA02(Target Mode) + EPCIE8XG4RDCA02(Host Mode)
    • External PCIe x8 Gen 4 Redriver Cable Adapter

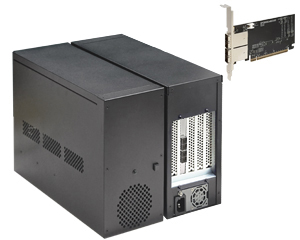

  • ED01-2B-P1HB1: External PCIe x16 Expansion Docking Enclosure with EPCIE16XG4RDCA02(Target Mode) + EPCIE16XG4RDCA02(Host Mode)
    • External PCIe x16 Gen 4 Redriver Cable Adapter

Kit includes

ED01-2B- P1 xxx y zz

  • ww: Power Supply
    • P1: 600W
  • xxx: Target & Host Cable Adapter
    • 8B0: EPCIE8XG4RDCA02(Target Mode)
    • 8B1: EPCIE8XG4RDCA02(Target Mode) + EPCIE8XG4RDCA02(Host Mode)
    • HB0: EPCIE16XG4RDCA02(Target Mode)
    • HB1: EPCIE16XG4RDCA02(Target Mode) + EPCIE16XG4RDCA02(Host Mode)
  • y: AC power cord 6 feet length
    • U: North America Plug (NEMA 5-15) --- CB-00260-02
    • E: Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • K: British Standard Plug (BS 1363) --- CB-00103
    • A: Australia Plug (AS3112) --- CB-00272
  • zz: SFF-8674 Cable (CB-S0060)
    • 10: L=1m
    • 15: L=1.5m
    • 20: L=2m
    • 30: L=3m
