Highlights
  • One PCIe x16 Slot (Slot2) for Target Cable Adapter
    • PCIe x16 Slot SMT Type
  • One PCIe x16 Slot (Slot1) for PCIe Add-in Card
    • PCIe x16 Slot Metal-Reinforced SMT Type
  • Dimensions: 55.52(W) x 164.53(L) mm
Introduction

PCIEX16D11 is PCIe x16 Expansion Docking Board.

Requires an target adapter card in the host interface card slot. The PCIe x16 2-slot Docking Board supports up to a PCIe x1/ x4/ x8/ x16 add-in Card.
Technical Specifications
  • Upstream (Slot2): For Target cable adapter
    • PCIe x16 Slot SMT Type
      • PCIEX16D11: Supports PCI Express Gen 4 Bandwidth
      • PCIEX16D11-G5: Supports PCI Express Gen 5 Bandwidth
  • Downstream (Slot1): Support PCIe x1/ PCIe x4/ PCIe x8/ PCIex16 Add-in Card
    • PCIe x16 Slot Metal-Reinforced SMT Type
      • PCIEX16D11: Supports PCI Express Gen 4 Bandwidth
      • PCIEX16D11-G5: Supports PCI Express Gen 5 Bandwidth
      • The PCIe Auxiliary Signals (REFCLK+, REFCLK-, SMCLK, SMDAT, PERST#, WAKE#) are from Target Cable Adapter
  • Power Connector: ATX 24-Pin Power Connector
  • Fan Power Connectors (12V Output):
    • JST compatible wafer 2pin (pitch=2.0mm) connector
    • JST compatible wafer 3pin (pitch=2.54mm) connector
  • PWR ON connector: JST compatible wafer 2pin (pitch=2.5mm) connector
    • Short to Pull-Down ATX 24pin Power Connector Pin16 (PS-ON)
      (For using the ON/OFF Switch on Switching Mode Power Supply)
    • Allows the upstream host to turn on the downstream sub-system's power
    • To enable the auto-switch power On/Off control the Host and Target Cable Adapters must have design to provide Cable Power On control and you need to use a cable (CB-00711) to join another PWR_ON connector on Target Cable Adapter.
  • Power Switch 2Pin Header (pitch=2.54mm): For Connecting On/Off Power Switch
  • Power LED 3Pin Header (pitch=2.54mm): 3.3V Indicator
  • Dimensions
    • 55.52(W) x 164.53(L) mm

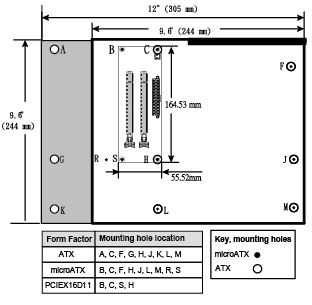

    • It suits for ATX & MicroATX Form Factor Mounting
    • NW: 58.3g (Unit Package:156.5g)
Available Models

PCIEX16D11
PCIe x16 Slot SMT Type
Supports PCI Express Gen 4 Bandwidth

PCIEX16D11-G5
PCIe x16 Slot SMT Type
Supports PCI Express Gen 5 Bandwidth

Applications



Slot1 PCIe REFCLK is from the Target Cable Adapter

PCIe x4

  • EPCIE4XCA02-T---External PCI Express x4 to PCIe x4 Passive Cable Adapter Card
  • EPCIE4XRDCA01A-T --- External PCI Express x4 to PCIe x4 Gen 2 Active Cable Adapter Card
    • Provide PWR ON connector

PCIe x8

  • EPCIE8XG4RDCA01---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
    • Provide PWR ON connector
  • EPCIE8XRDCA03A---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
    • Provide PWR ON connector
  • EP8X-PCIE8XG302-T---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 3 Switch Host Card (for Target)

PCIe x16

  • EPCIE16XRDCA02A---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
    • Provide PWR ON connector
  • EPCIE16XRDG4CA02---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
    • Provide PWR ON connector
  • PCIEX16E-16E---PCIe x16 edge connector to PCIe x16 edge connector Interconnect Cabling solution
Related Products
  • CB-00711---JST Wafer 2pin Cable; Pitch=2.5mm, 26AWG, , L=30cm
  • CB-00645---JST Wafer 2pin Cable; Pitch=2.0mm, 26AWG, , L=70cm
